Key Features:
Automatic positioning according to workpiece thickness

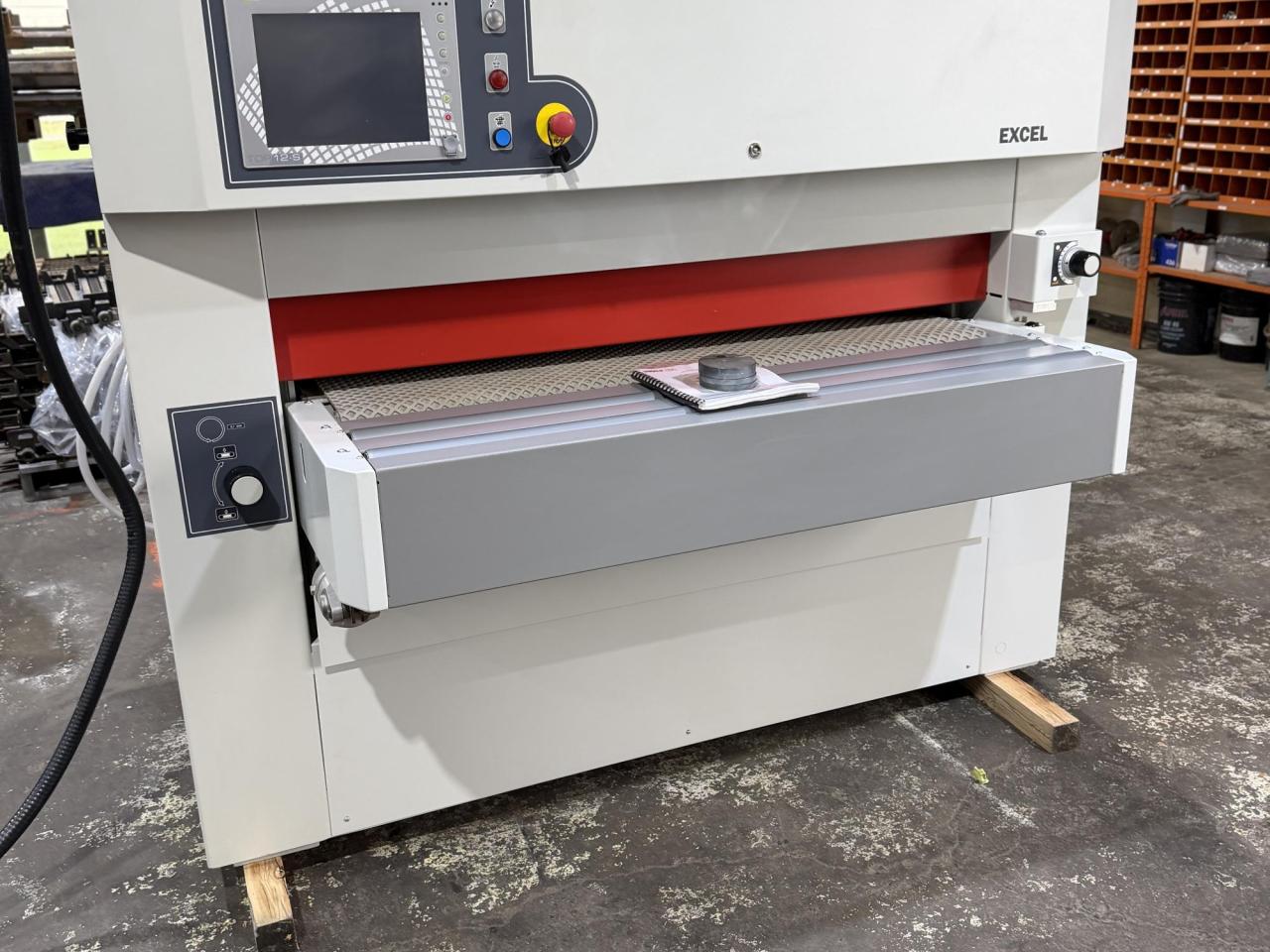

Digital readout for precise thickness control
Sanding roller deactivation from the control panel

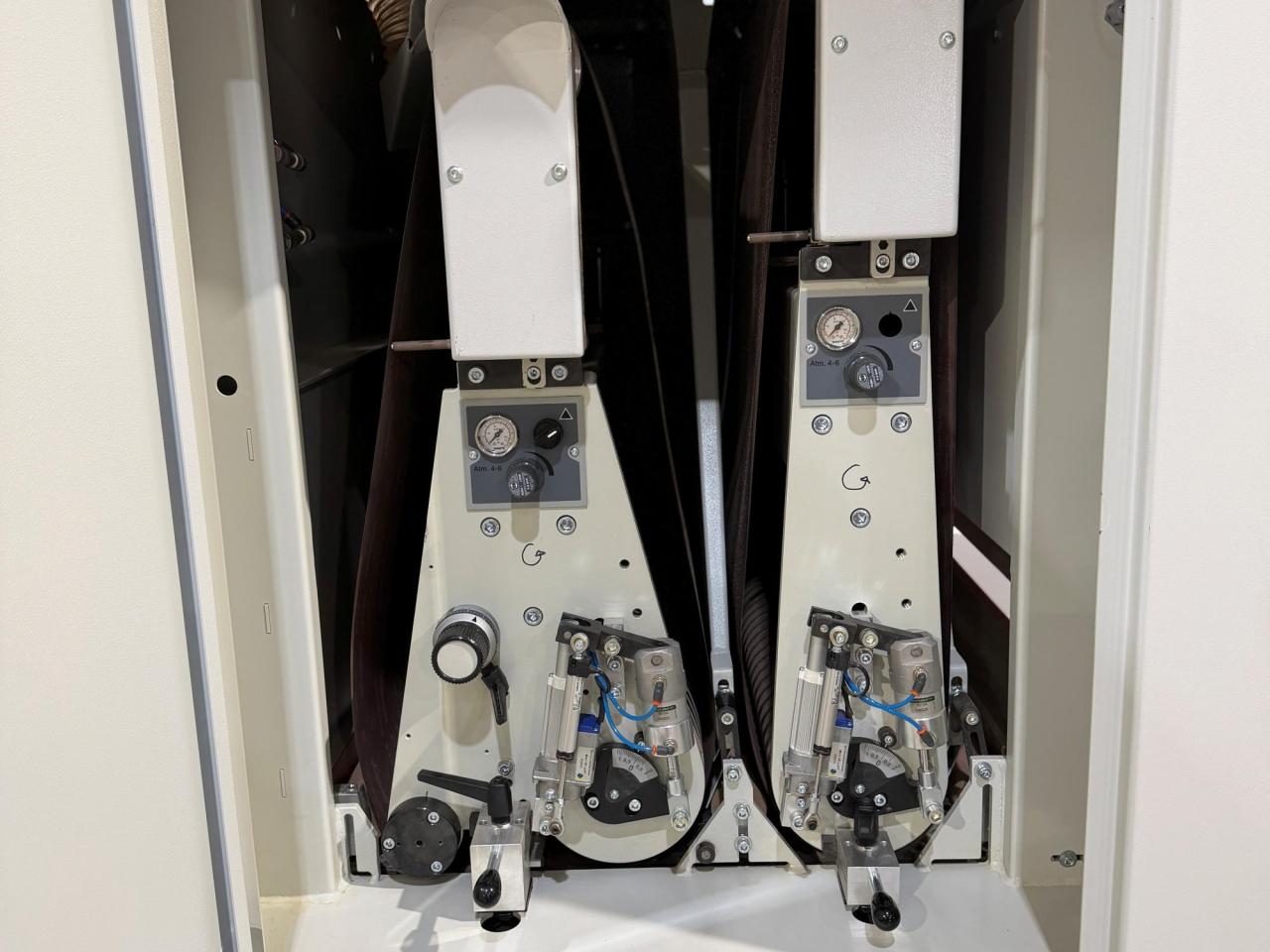

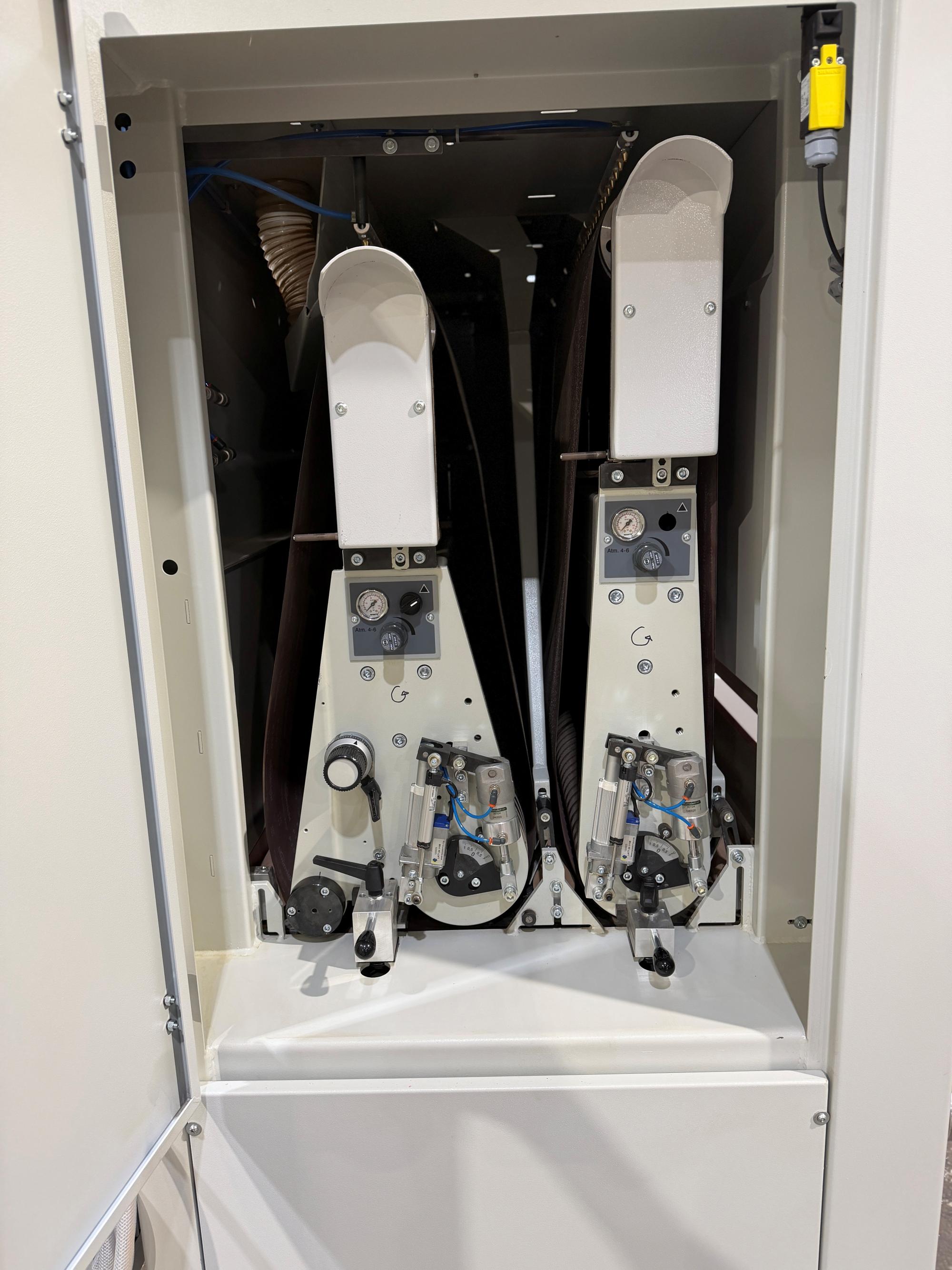

Gear-driven self-centering sanding belt system

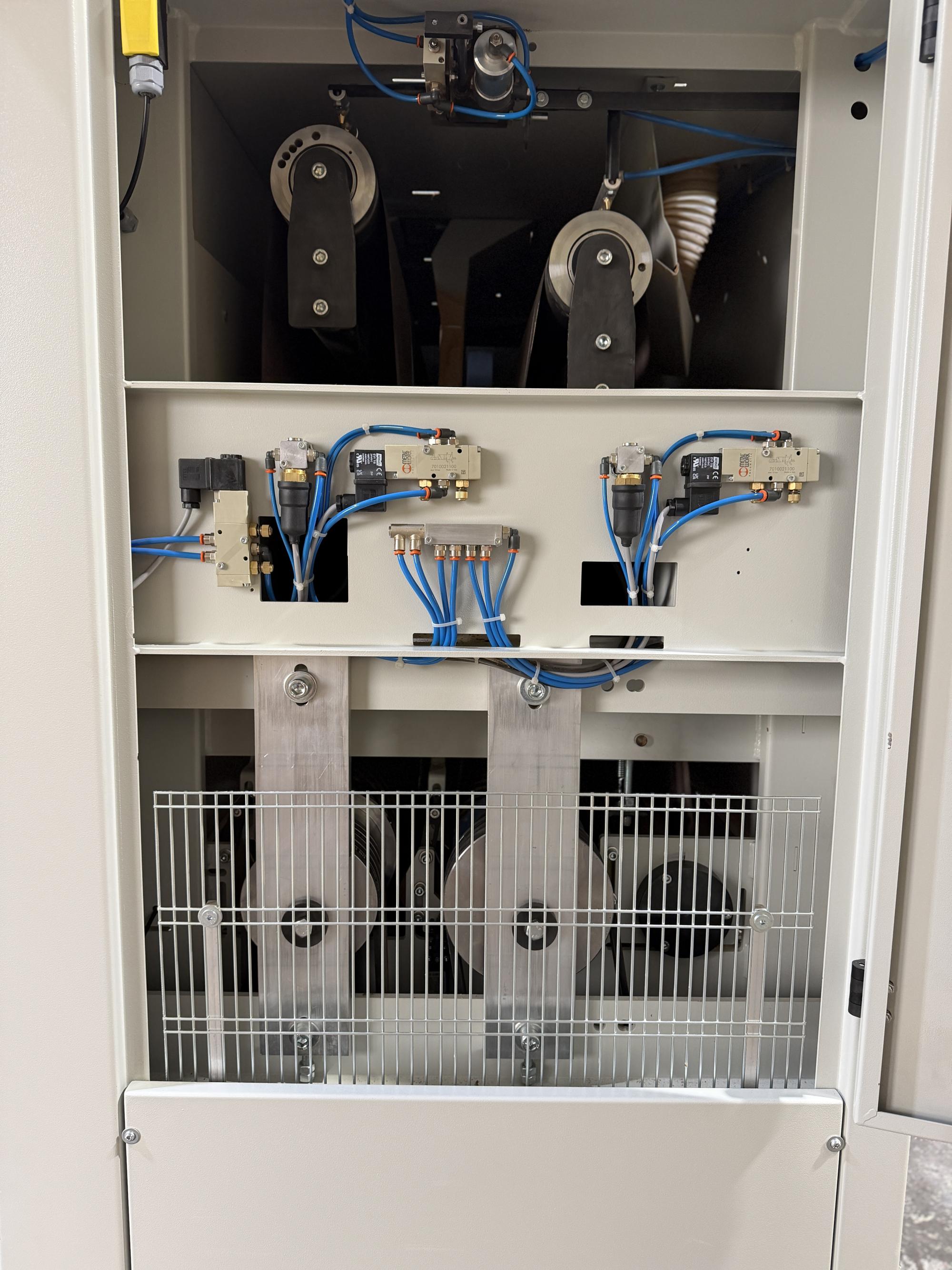

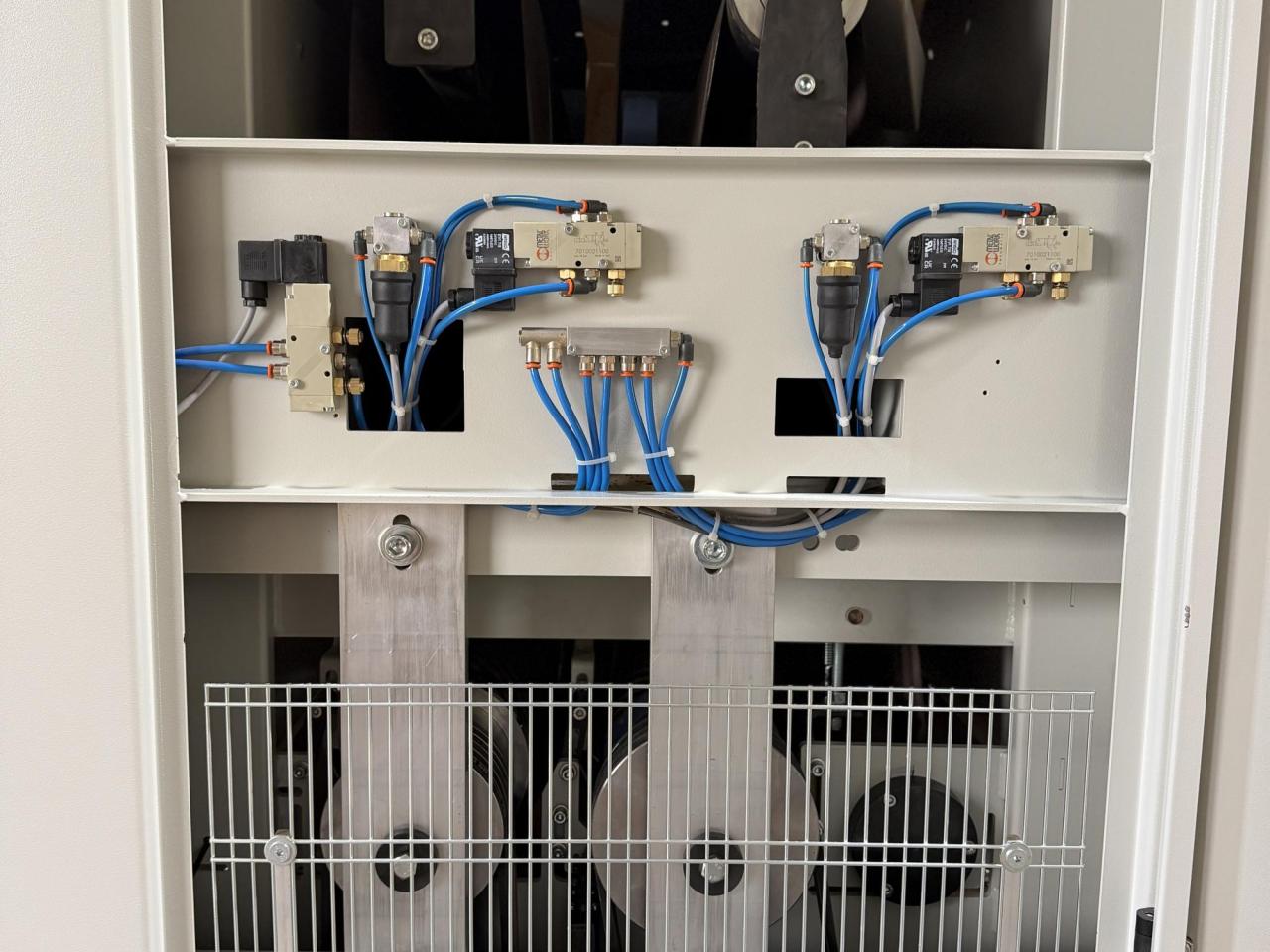

Pneumatic belt tensioning for optimal performance
Timed air blowers for belt cleaning
First station exclusion directly from the control panel
Quick sanding pad positioning based on grit
High-speed belt stop brake and emergency safety bar
Rubber-coated pressure rollers for consistent contact
Infeed and outfeed table rollers for smooth material handling
Automatic conveyor belt centering
| Station #1 (steel roller) | |
| Station #1 motor | 25 HP/600V/60C/3Ph |
| Steel roller diameter | 180 mm (D) |
| Station #2 (Rubber roller and sanding pad) | |
| Station #2 motor | 25 HP/600V/60C/3Ph |
| Rubber roller diameter | 180 mm (D) |
| Sanding pad wodth | 50 mm |
| Feeding | |
| Feeding motor | 2 HP/600V/60C/3Ph |
| Variable feeding speed | 4 ~ 20m/min |
| Table elevation | |
| Elevation motor | 0.33 HP/600V60C/3Ph |
| Maximum working width | 1350 mm |
| Maximum workpiece thickness | 160 mm |
| Sanding belts dimensions | 1370 mm (W) x 2150 mm (L) |
| Sanding belts speed | 18-16 m/sec |
| Dust hoods | 2x 160 mm(D) + 2x 80 mm (D) |
| Net weight | 1900kg/4180 lbs |
