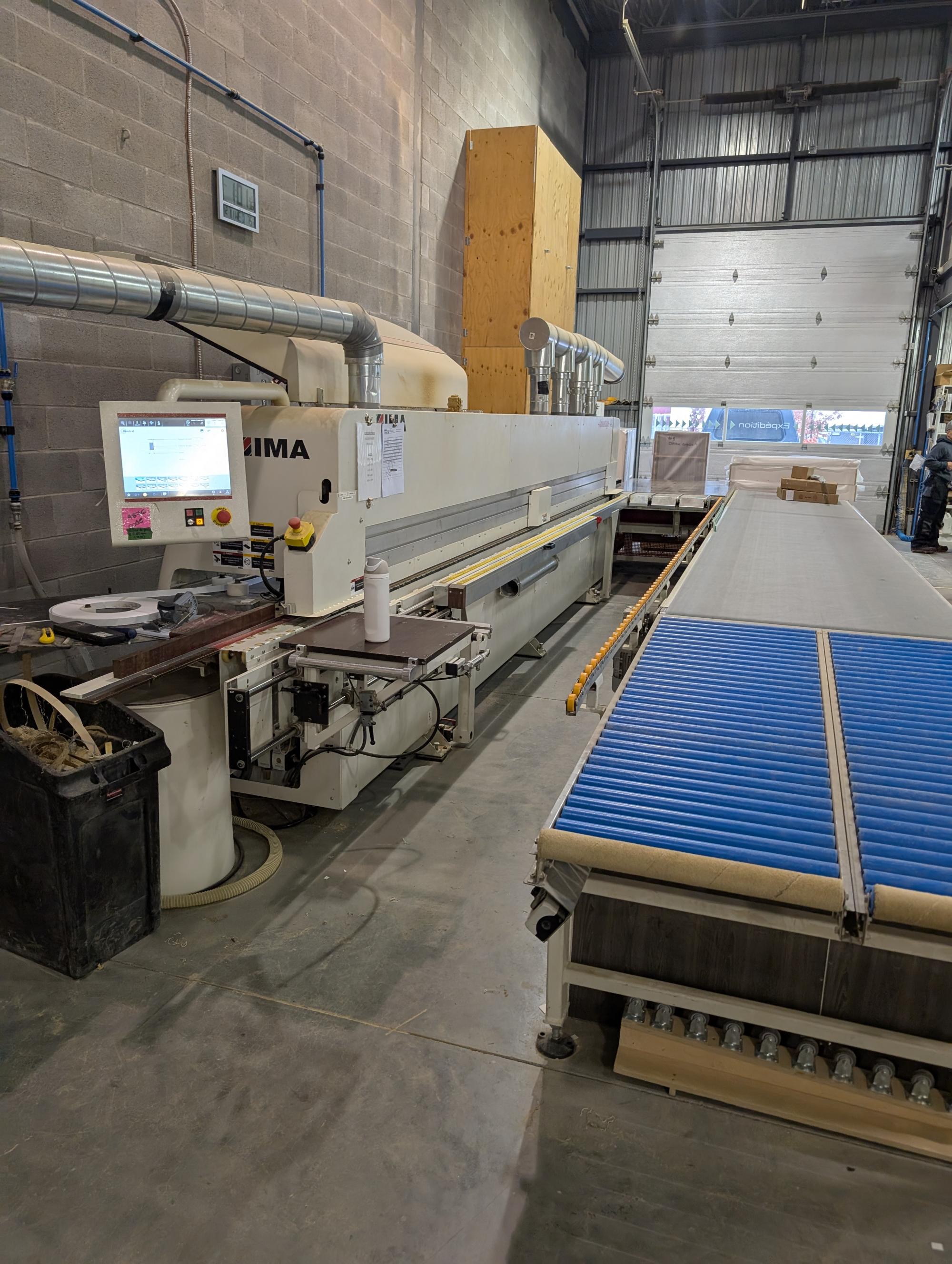

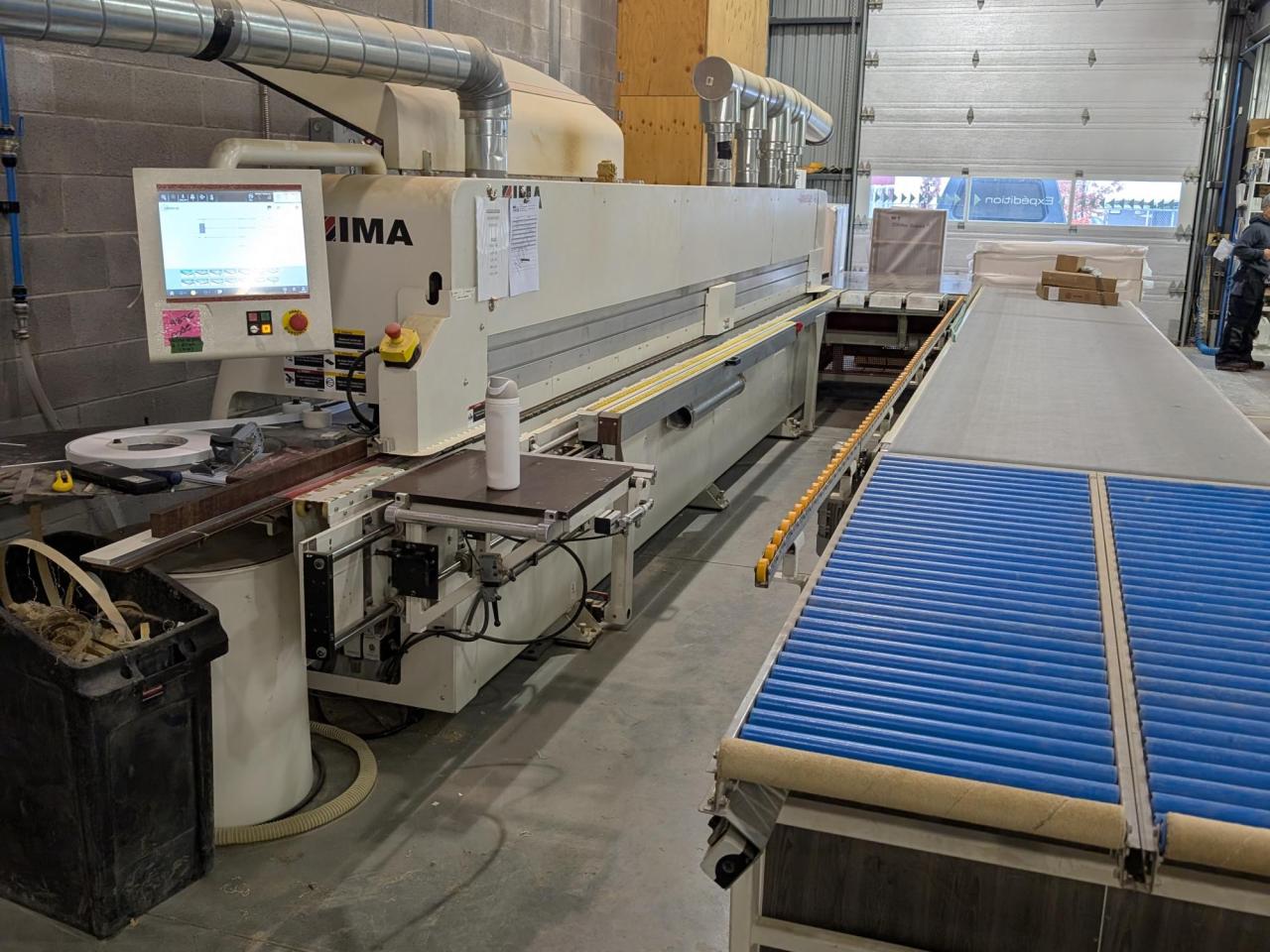

Edgebander IMA Advantage 400

General Specifications:

• Nesting assembly

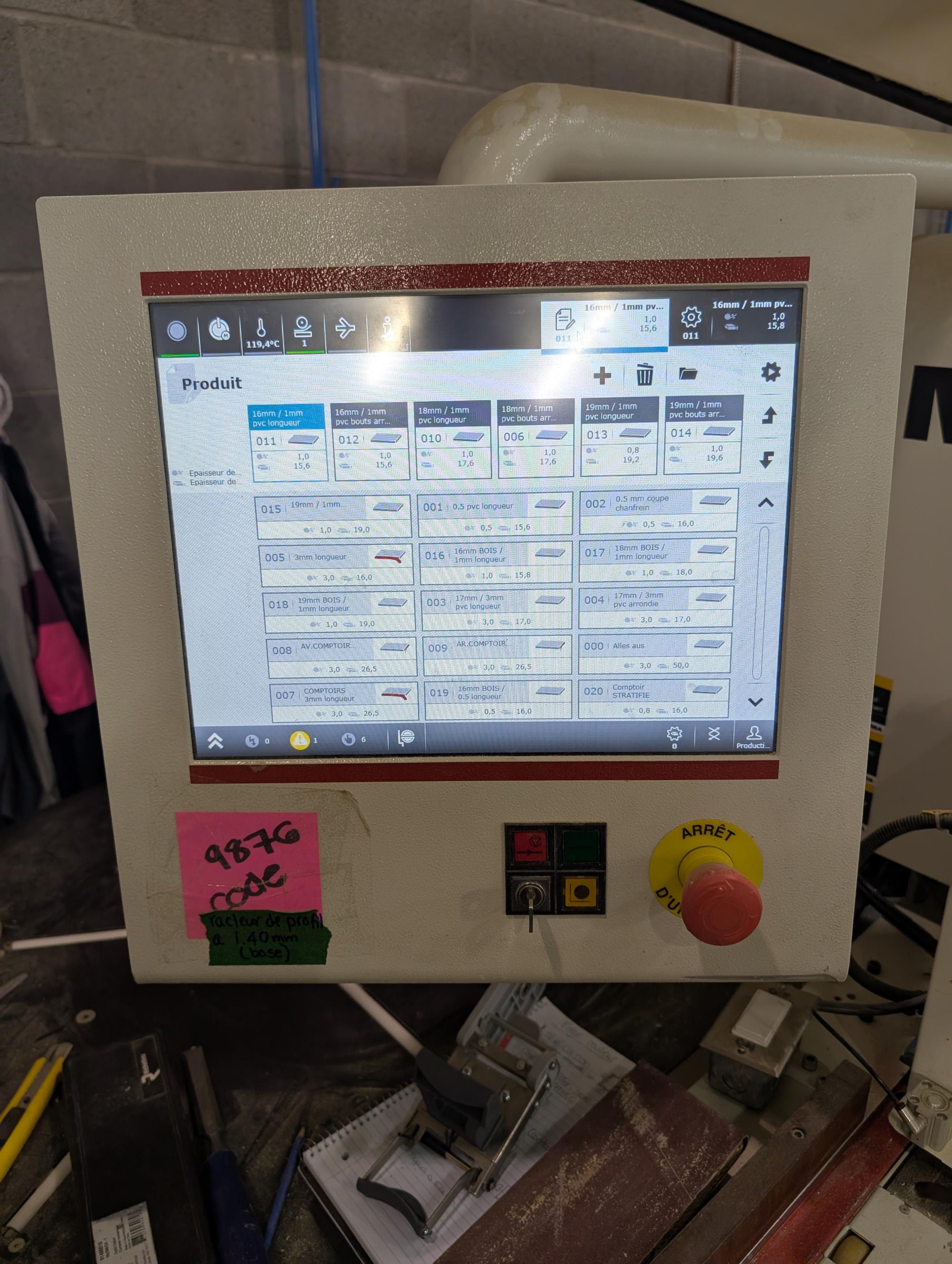

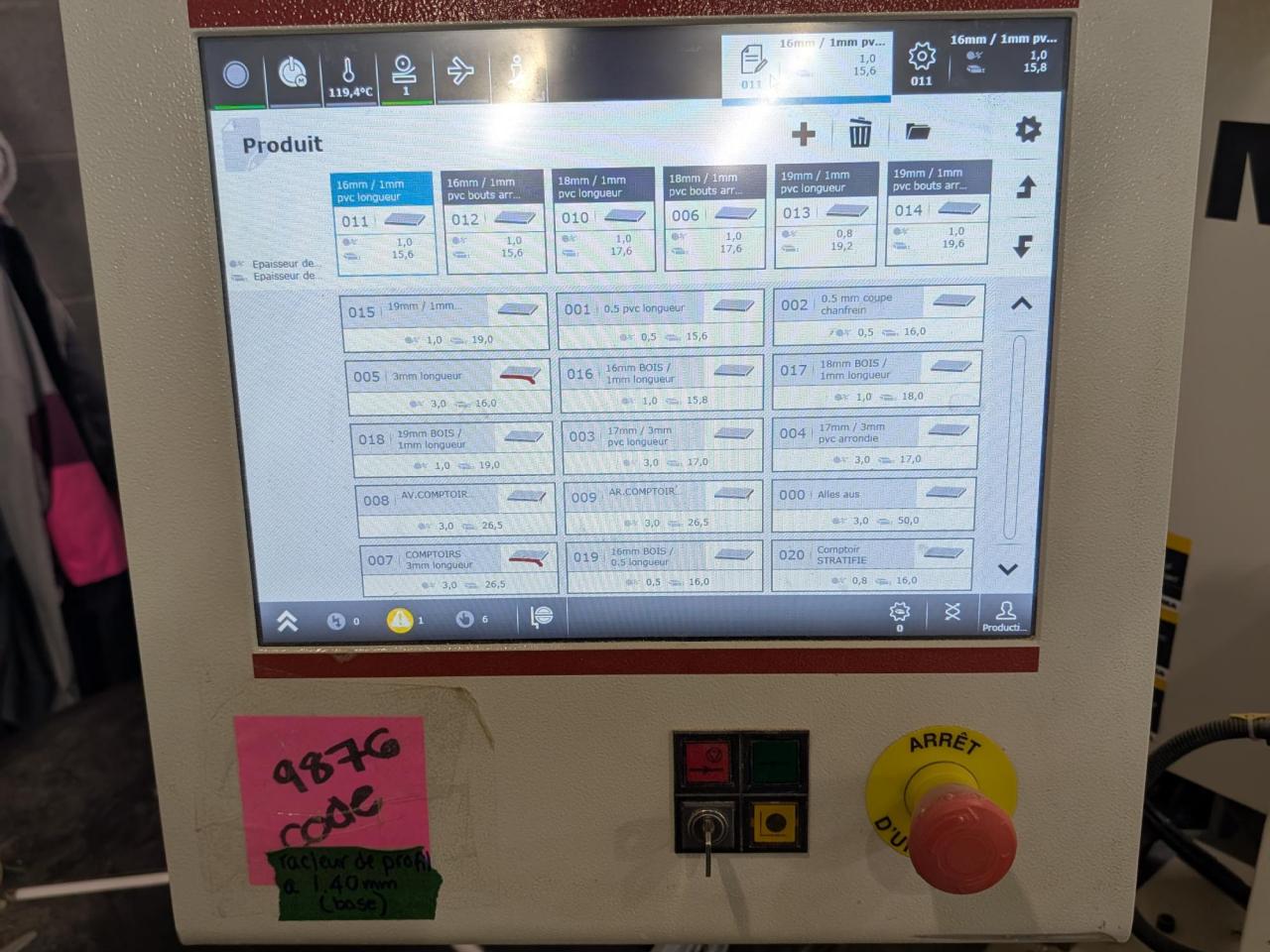

• 15-inch touchscreen
• Feed speed: 20 m/min (65.6 ft/min)
• Panel thickness: min. 8 mm — max. 65 mm
• Minimum panel width: 65 mm (2.5 inches)
• Minimum panel length: 150 mm (6 inches)
• Edge thickness (roll): 0.5 mm to 3 mm
• Edge thickness (solid strips): 0.5 mm to 12 mm
• Machine length: 5,700 mm (18.6 ft)
• Upper pressure drive with belt
• Weight: 7,500 lb

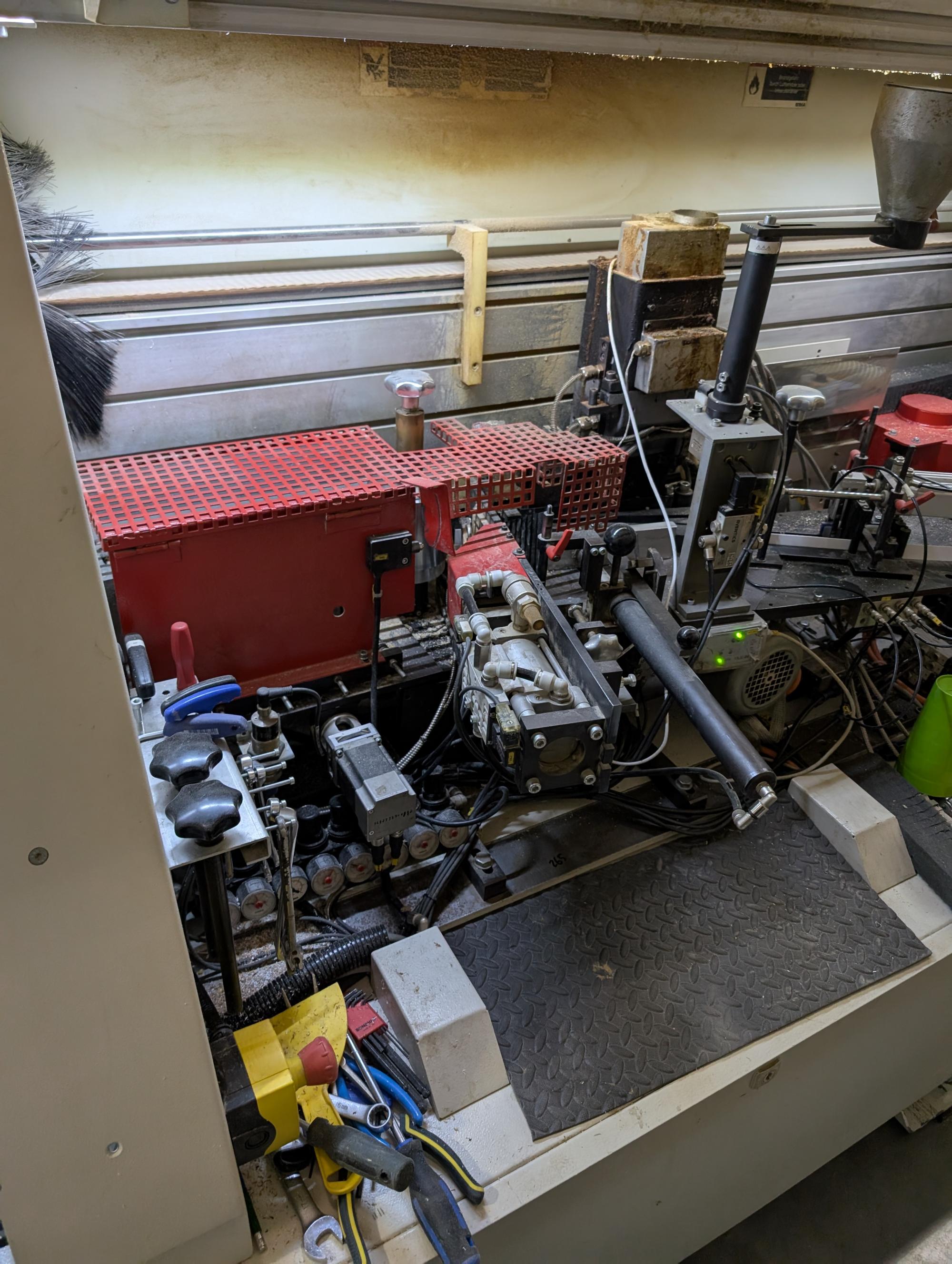

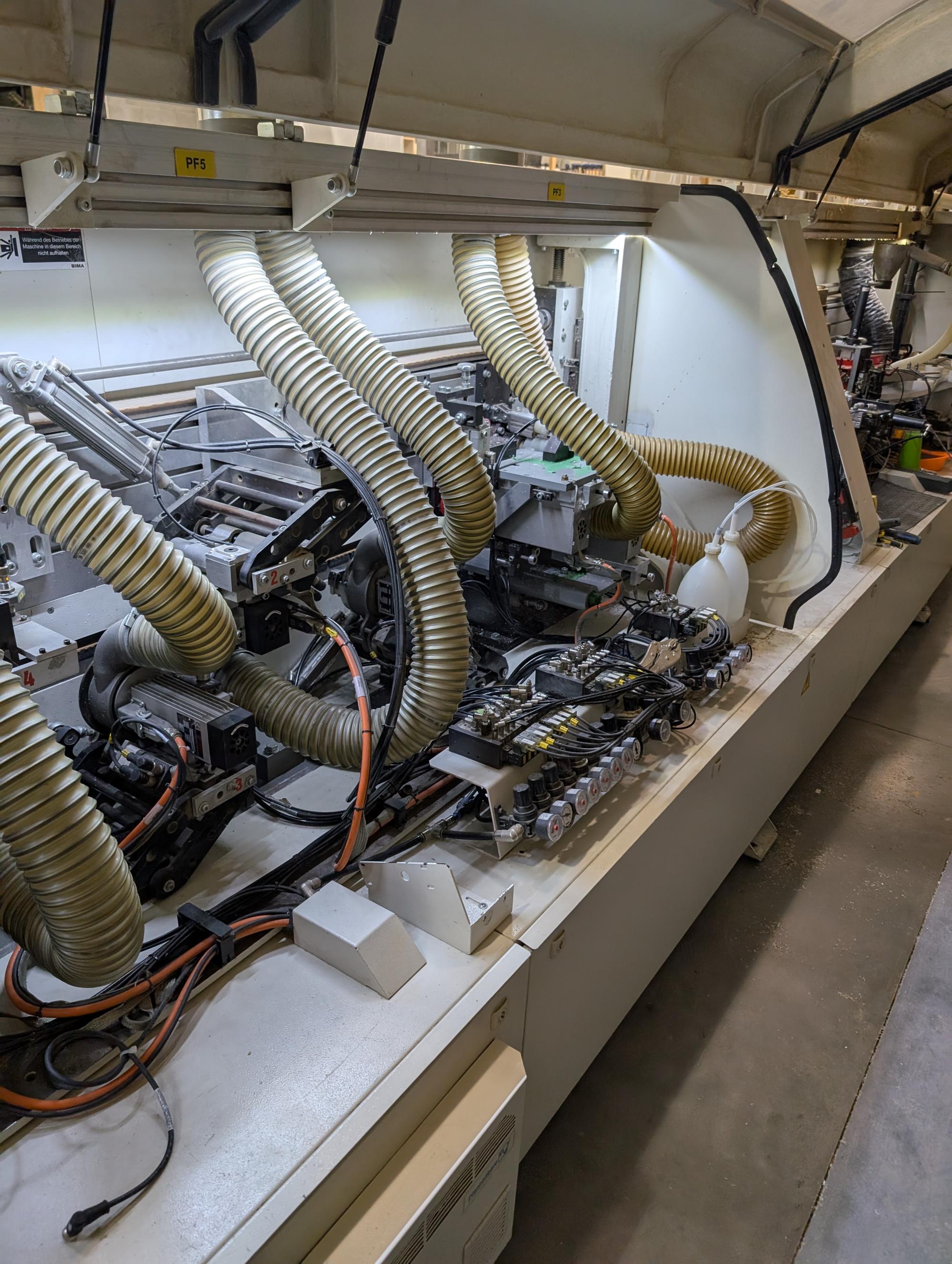

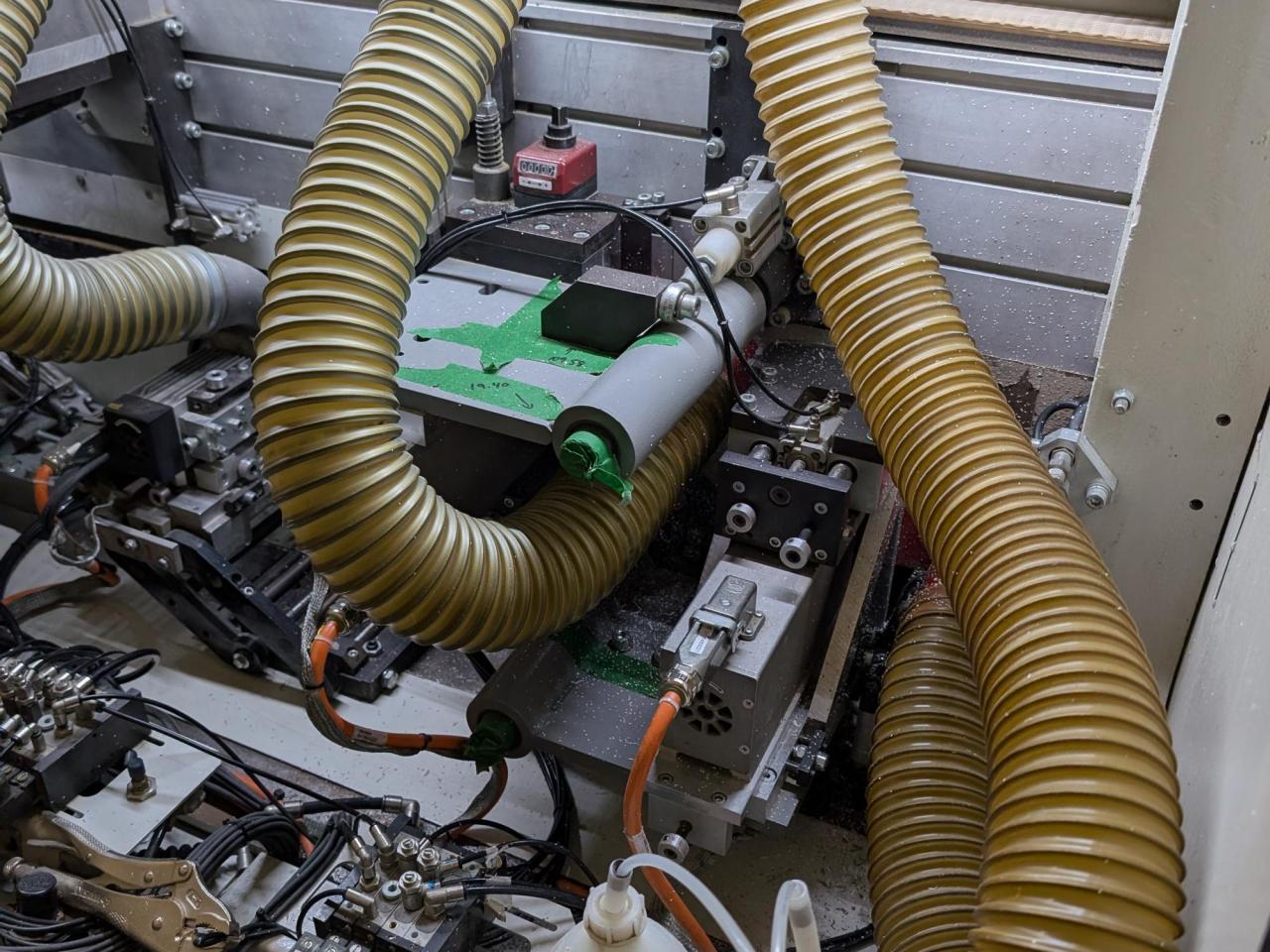

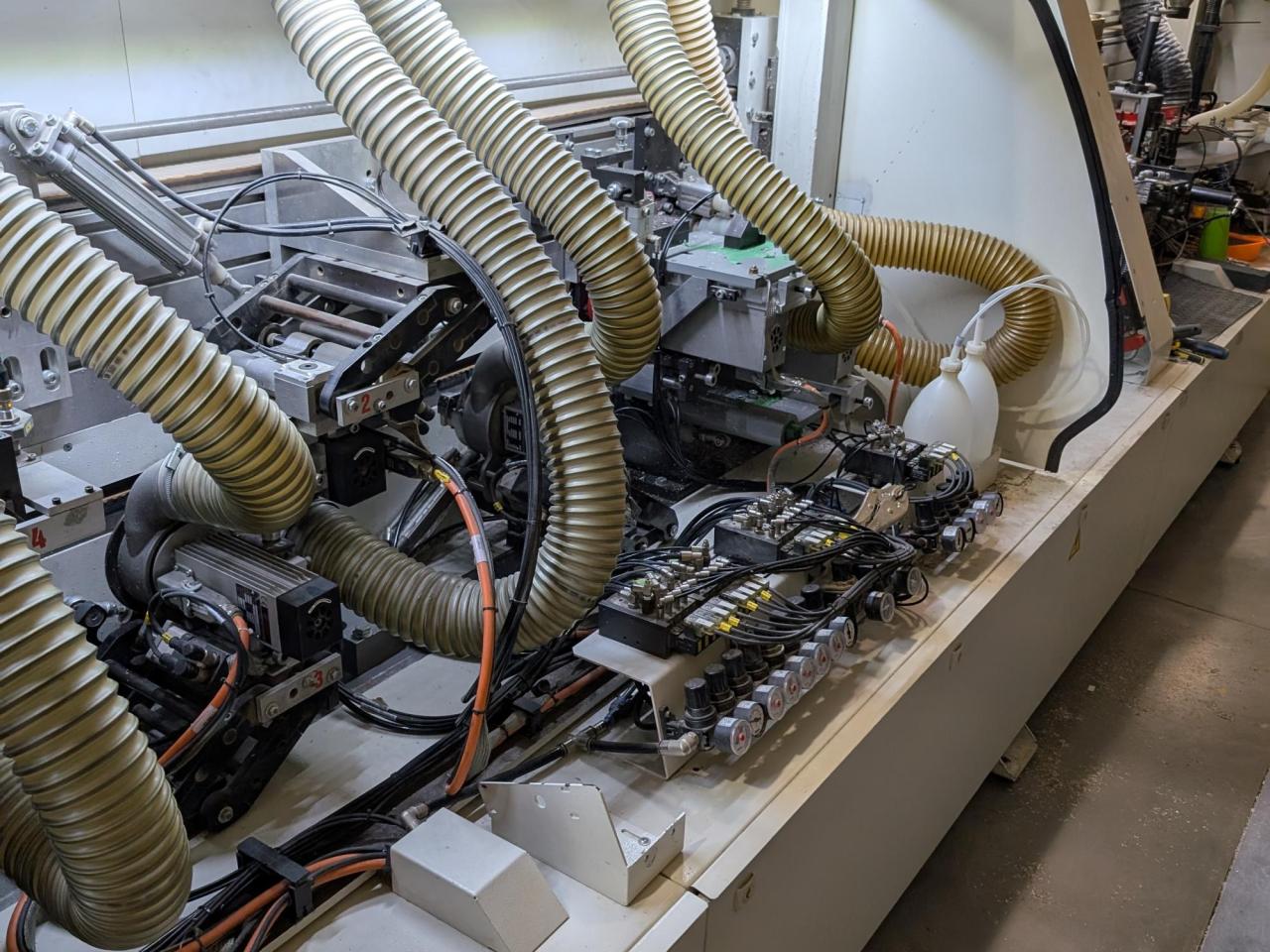

Internal Composition:

• Elevation – automatic positioning with servomotor
• Pre-milling - automatic positioning with servomotor
• Infrared lamp
• Antistatic products
• Interchangeable EVA glue pot
• Pressing unit with 6 rollers – automatic positioning with servomotor
• End trimming unit
• Top and bottom trimming unit
• Corner rounding + finishing trimmer – automatic positioning with servomotor
• Edge scraper – automatic positioning with servomotor
• Cleaning products
• Glue scraper – automatic pneumatic positioning
• Polishing unit

Includes:

• Electrical transformer

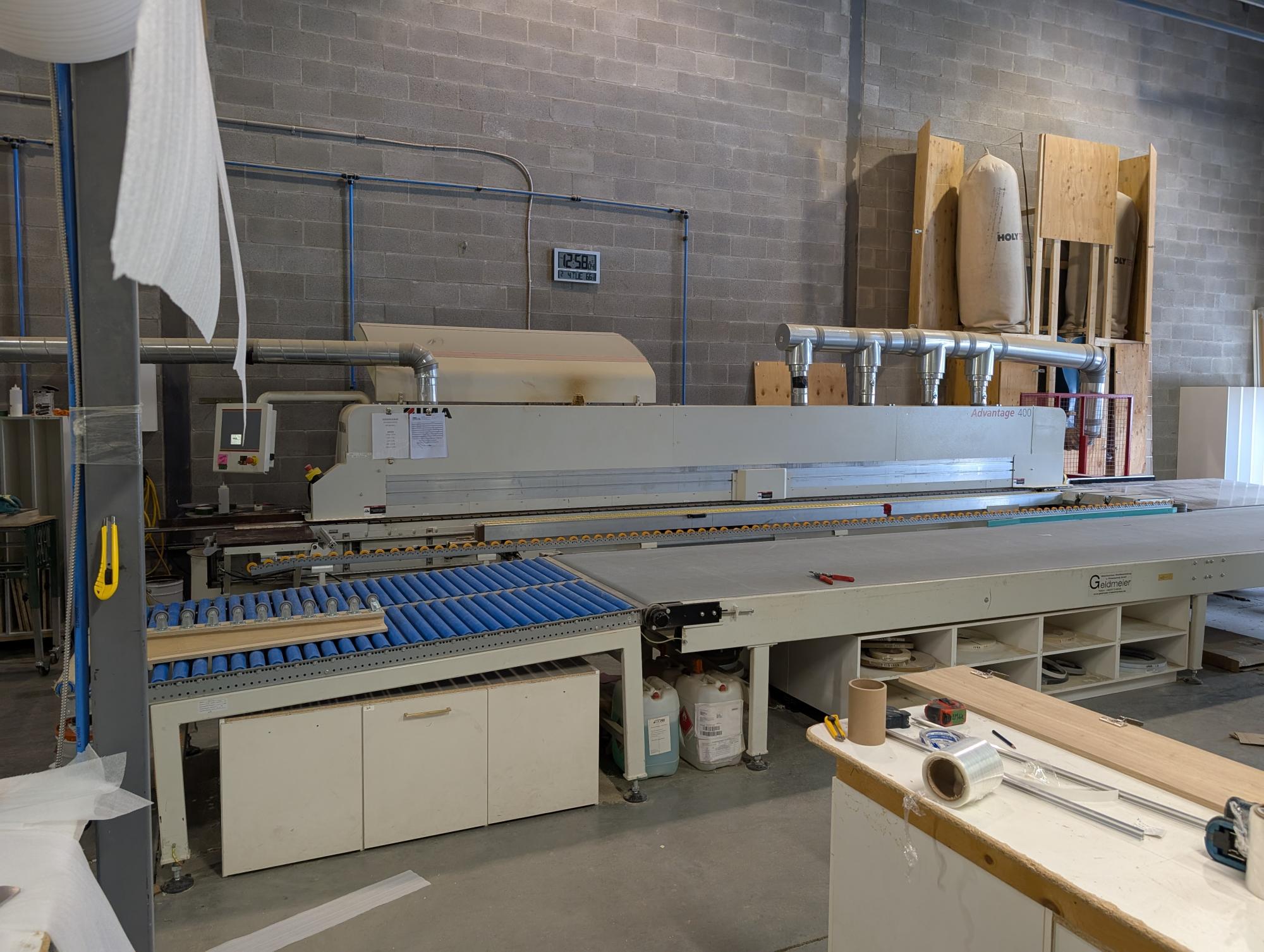

• Return conveyor
