Doucet
BT3-36-7-25-D-PT
2019

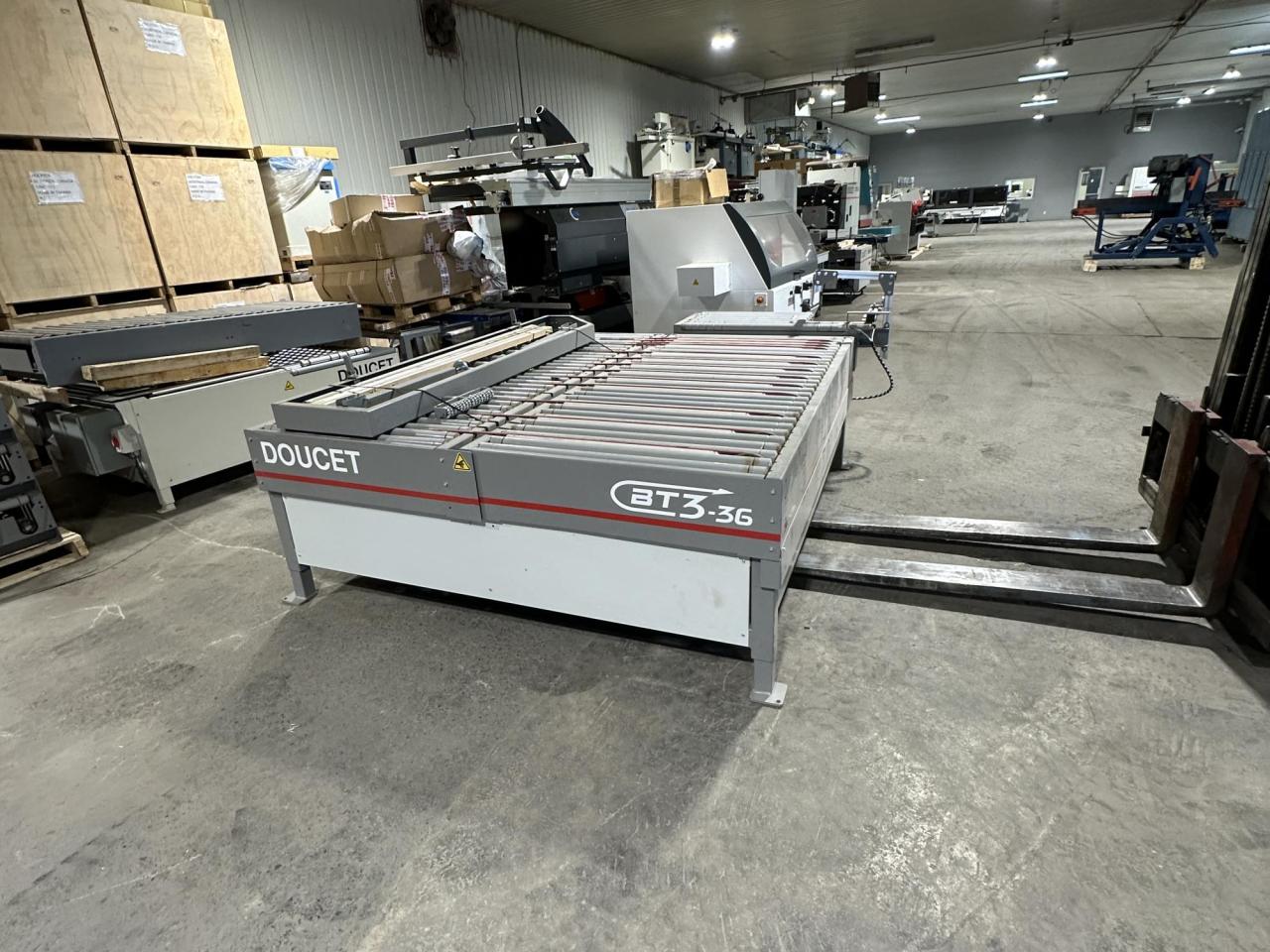

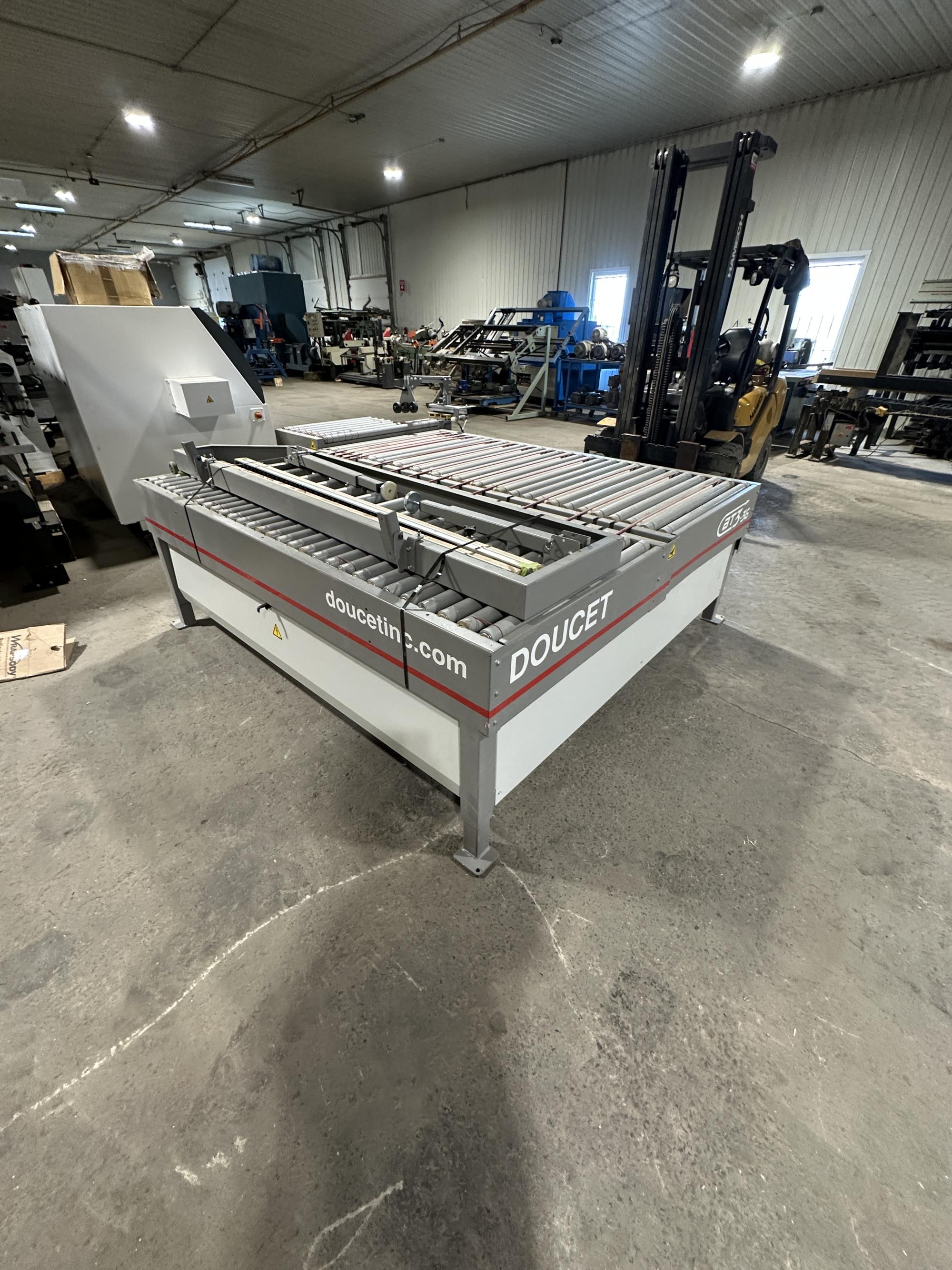

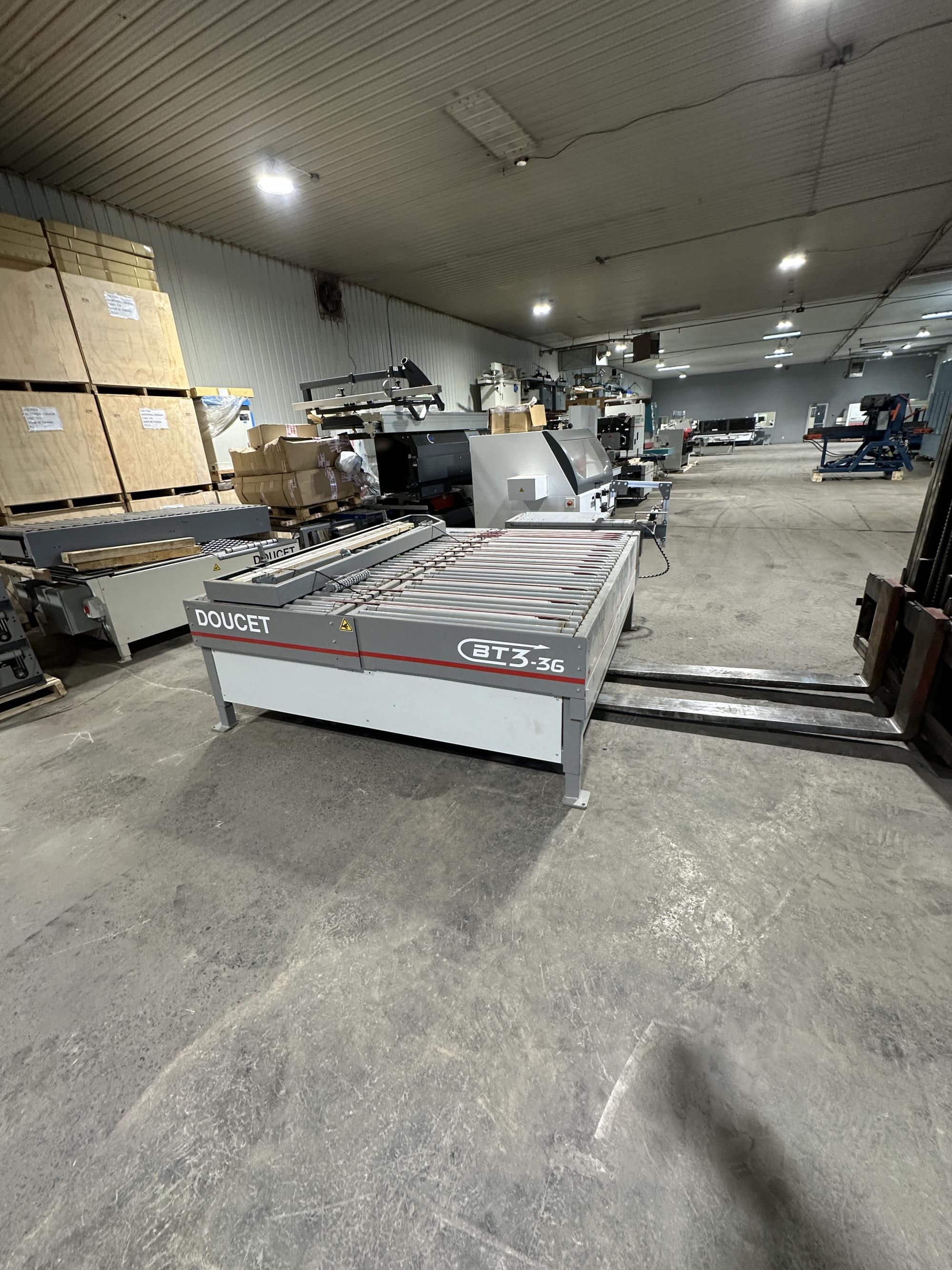

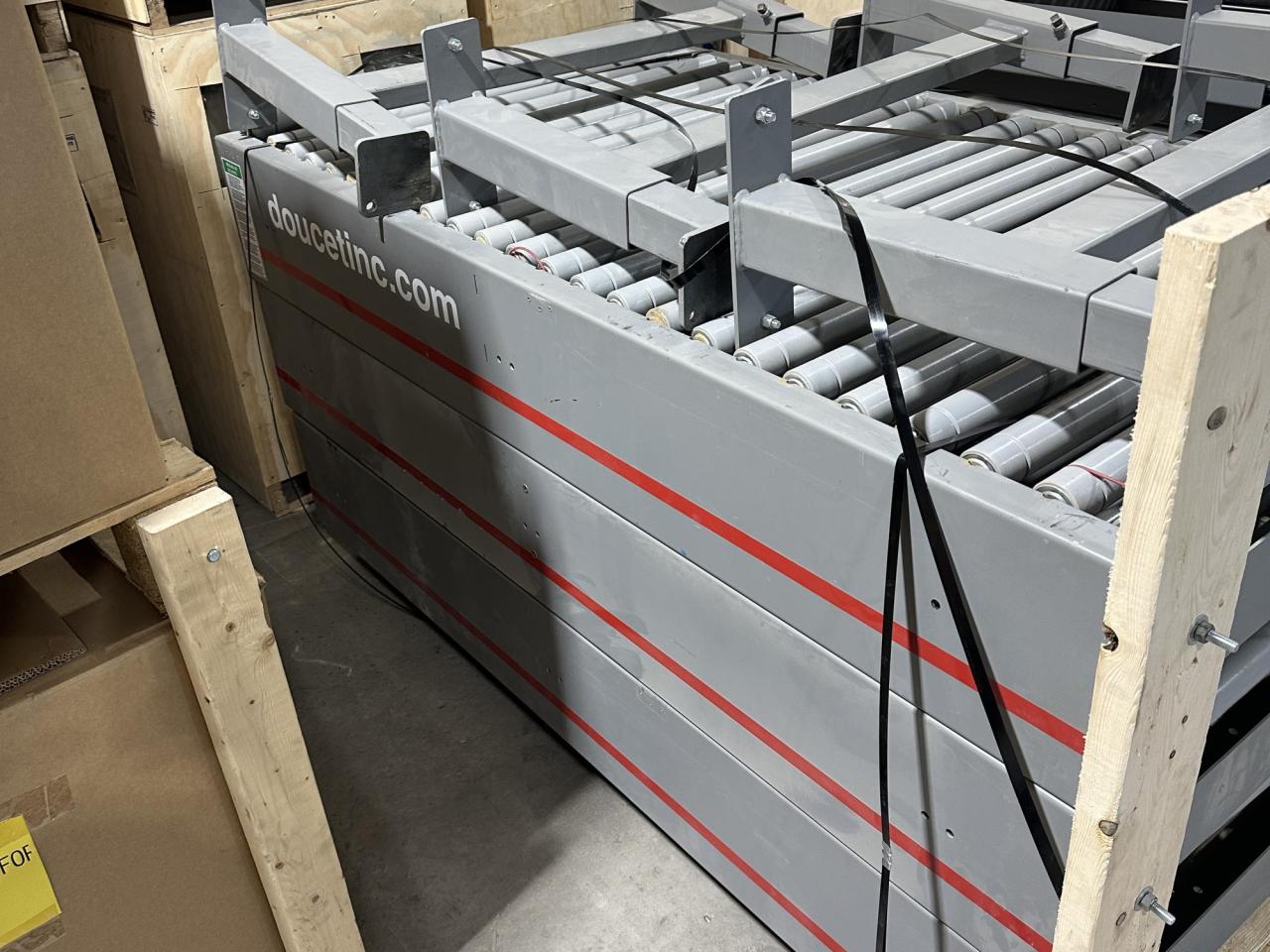

Return conveyor BT3-36-7-25-D-PT Doucet

Inventory number: 11376
Used product
Capacity
Right return 25'x 36'' / Reception 7' x 36''
Voltage
600V/60/3ph
Description
  • Receiving side: right
  • Receiving table dimensions: 7 feet (length) x 36 inches (width
  • Return conveyor dimensions: 25 feet (length) x 36 inches (width)
  • Return length without the receiving section: 18 feet
  • Maximum part dimensions: 52" x 120"
  • Maximum panel weight: 140 lb

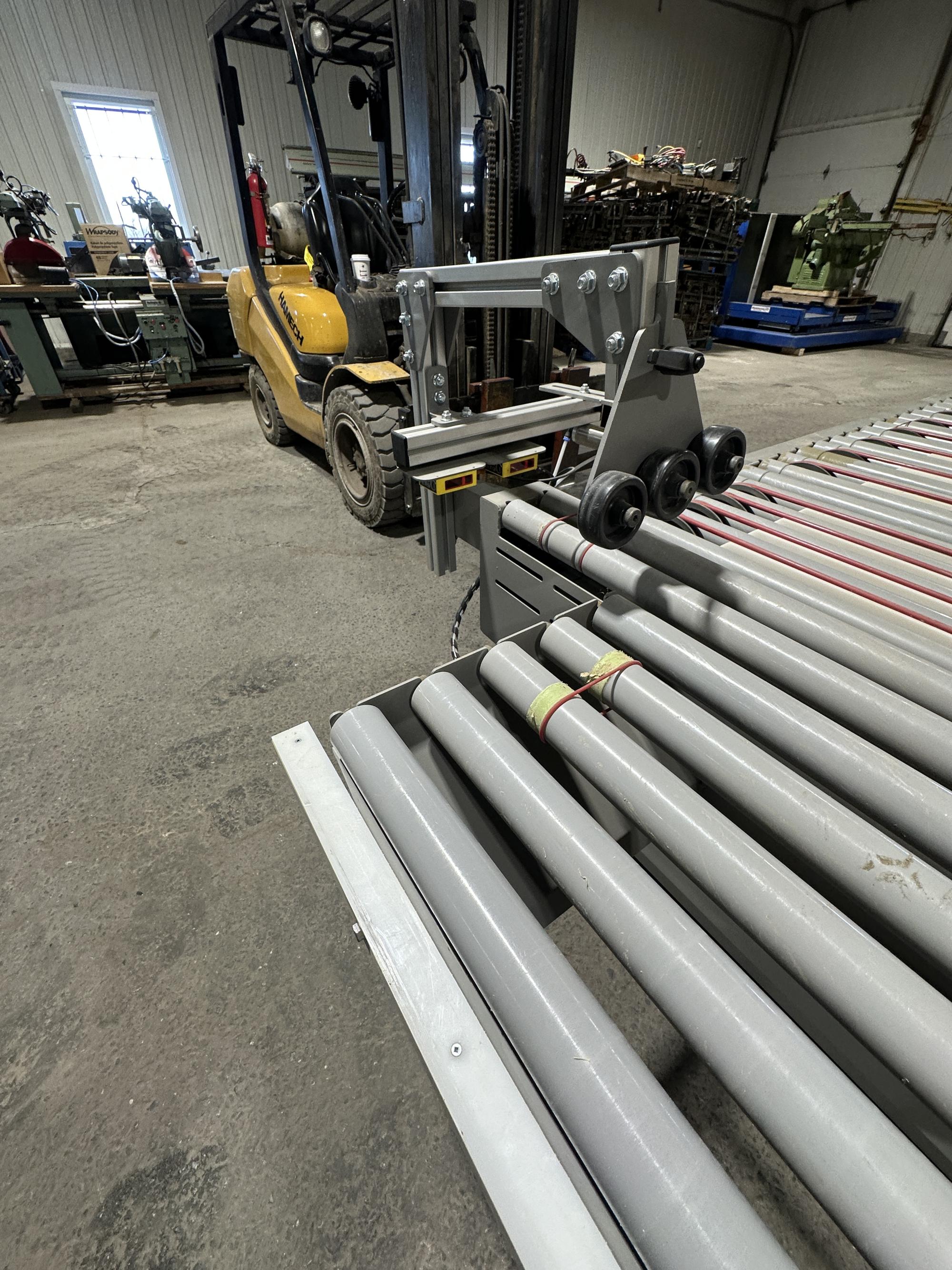

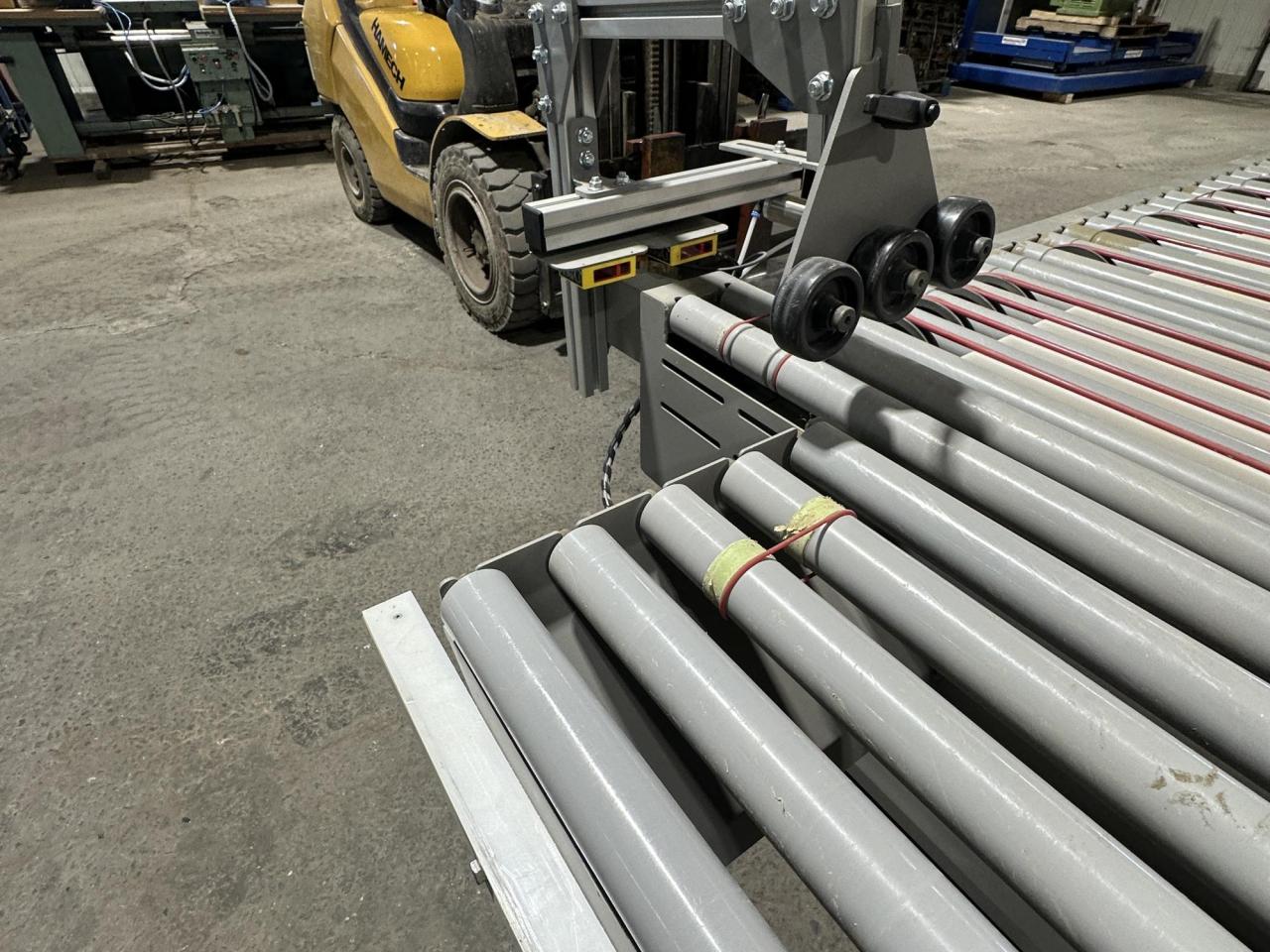

  • PT option: rectangular panel turner for panels up to 90" long
  • Receiving table speed: variable from 30 to 90 feet/min
  • Belt transfer speed: fixed at 180 feet/min (same for the conveyor)
  • Return conveyor speed: variable from 60 to 180 feet/min
  • Air consumption: 9.5 CFM at 80 psi
