Optimized / Automatic Edging Line — OSI & Cantek

Optimized / Automatic Edging Line — OSI & Cantek

Capacity: Feed speed: 15 to 135 feet per minute

Workpiece width: 3 to 15 inches

Maximum workpiece length: 4 to 14 feet

Maximum cutting thickness: 4.33 inches

Edging Steps:

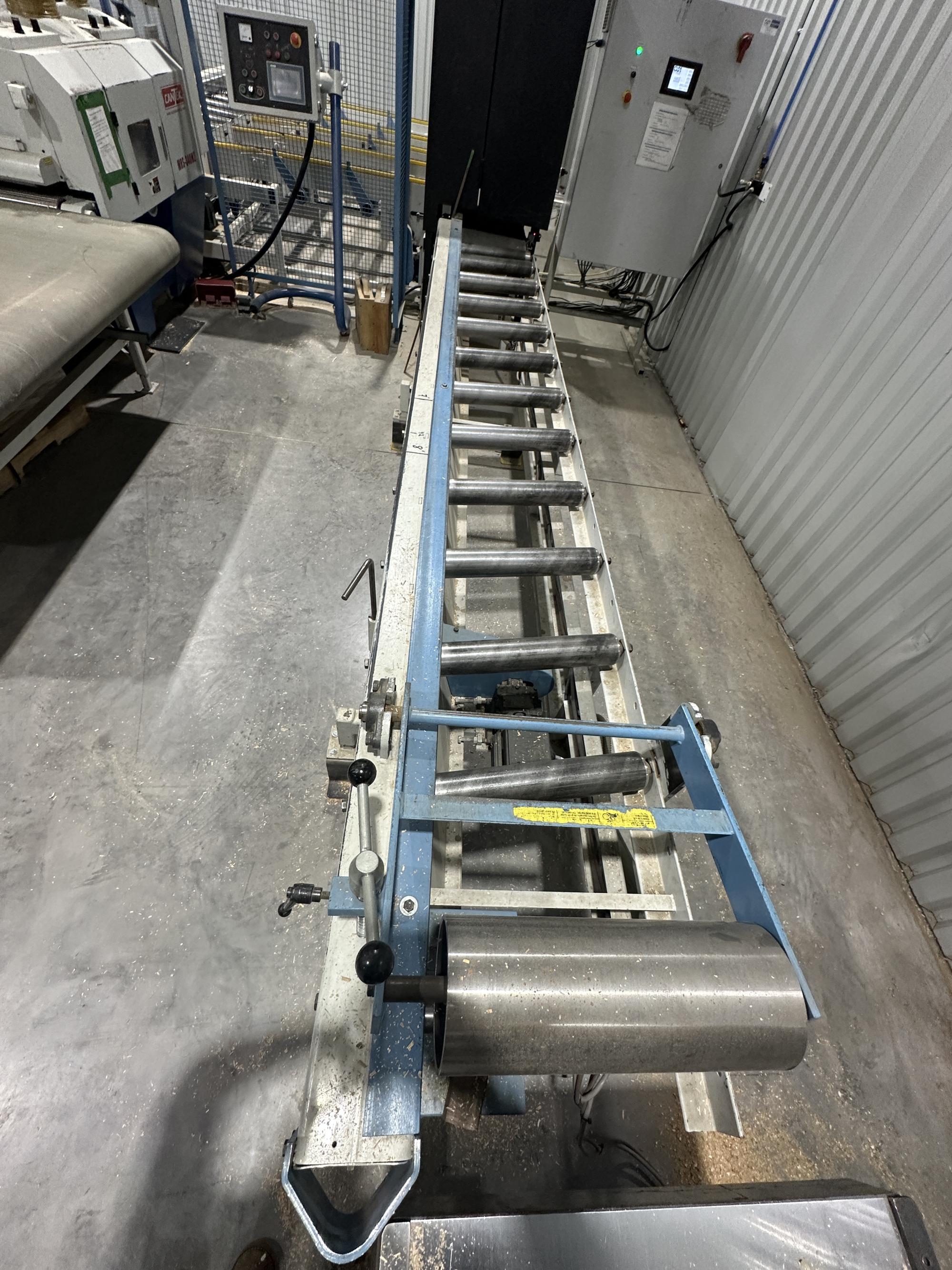

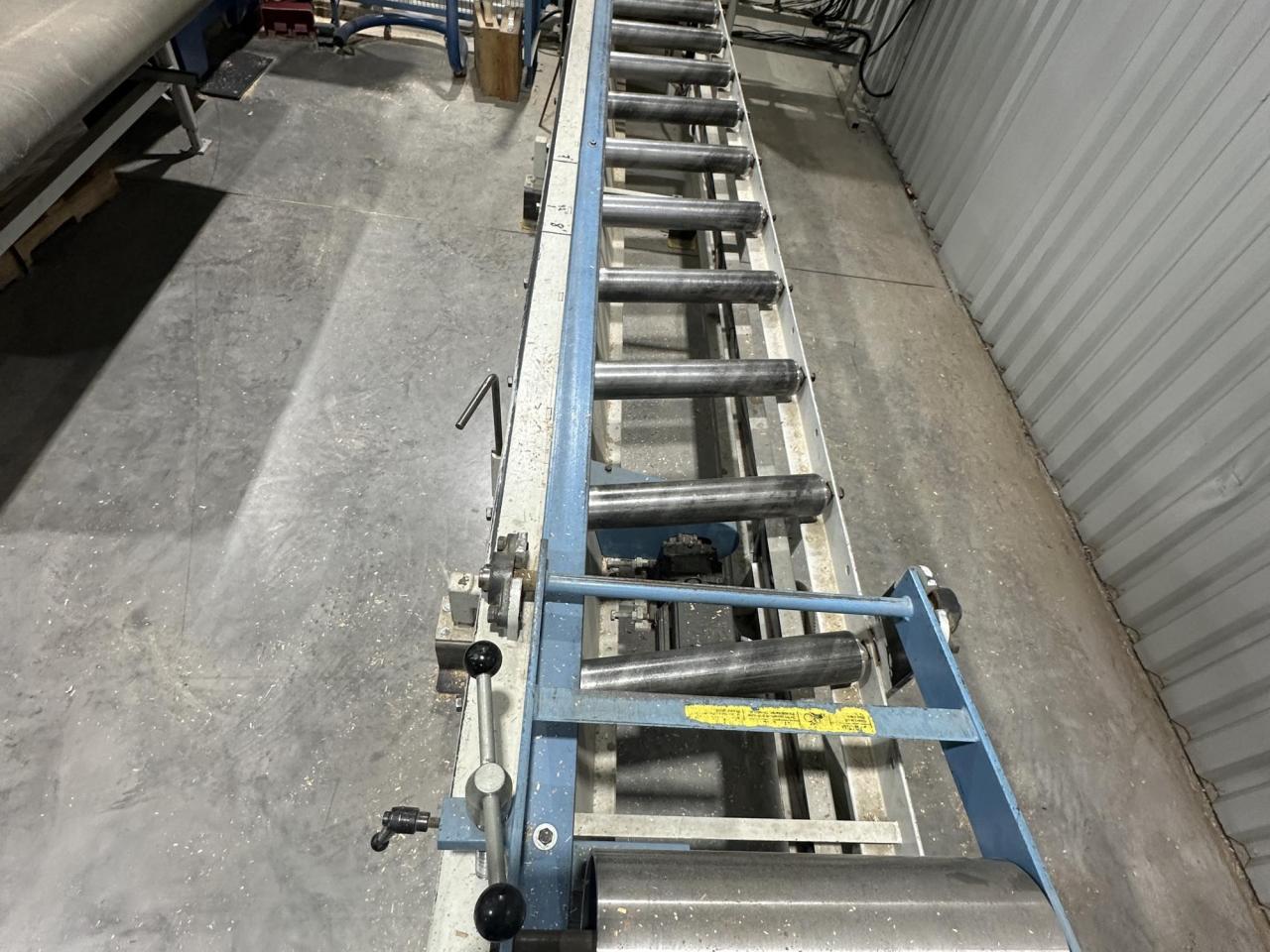

• Feed via motorized roller infeed conveyor (16 in x 15 ft)

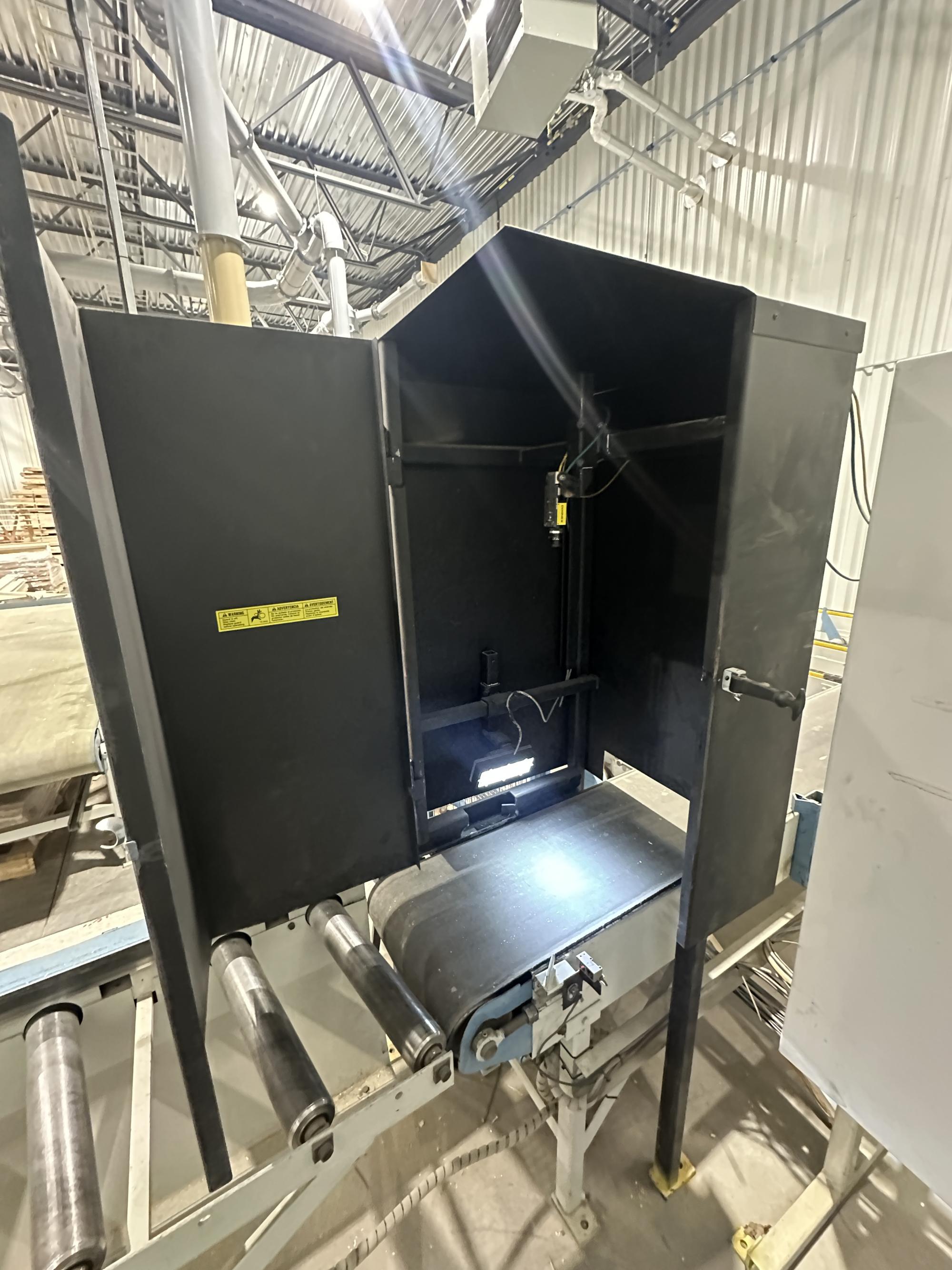

• Cognex scanner — optimization performed by OSI / Logitex software

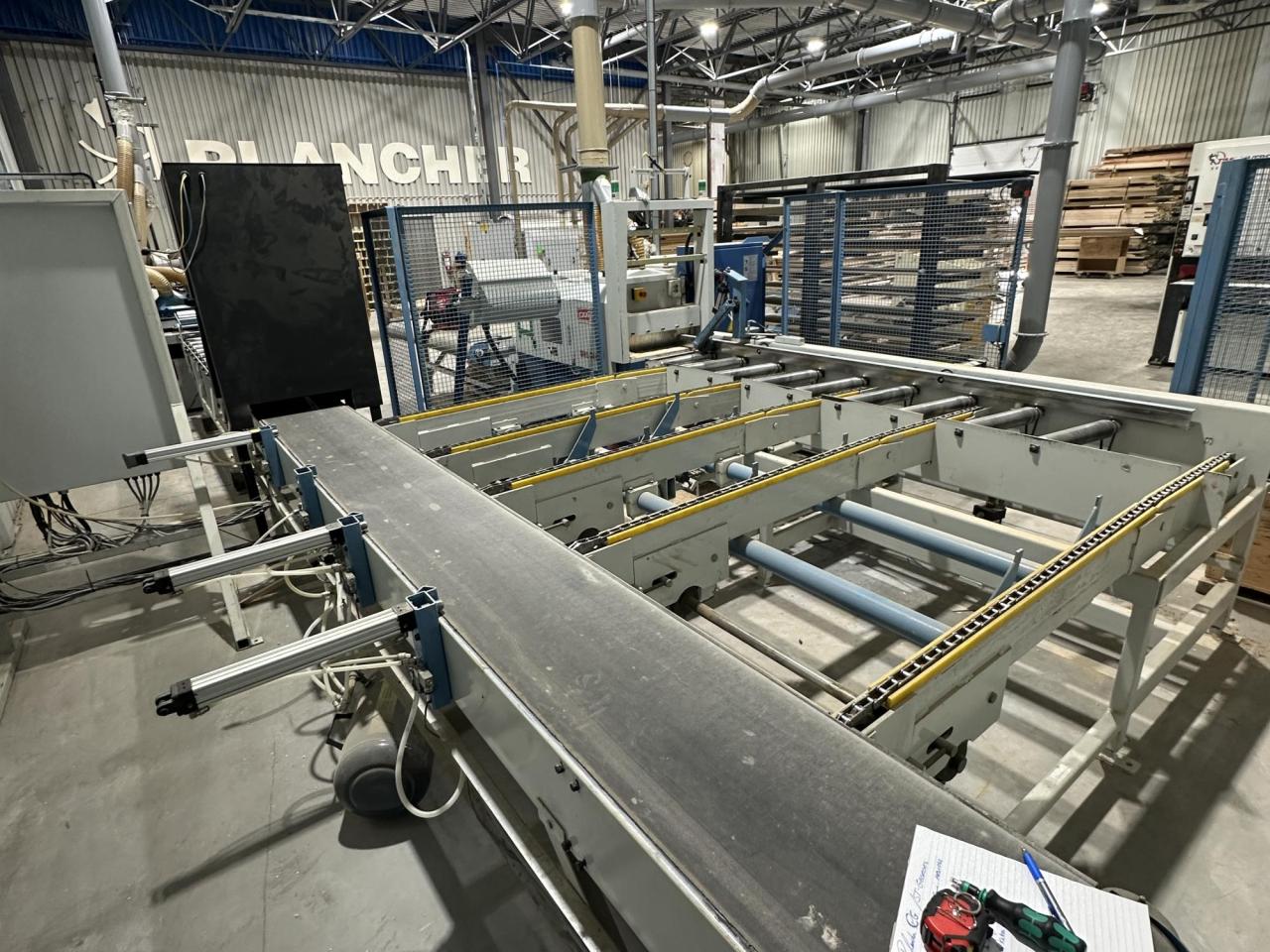

• Lateral transfer — OSI (16 ft x 15 ft)

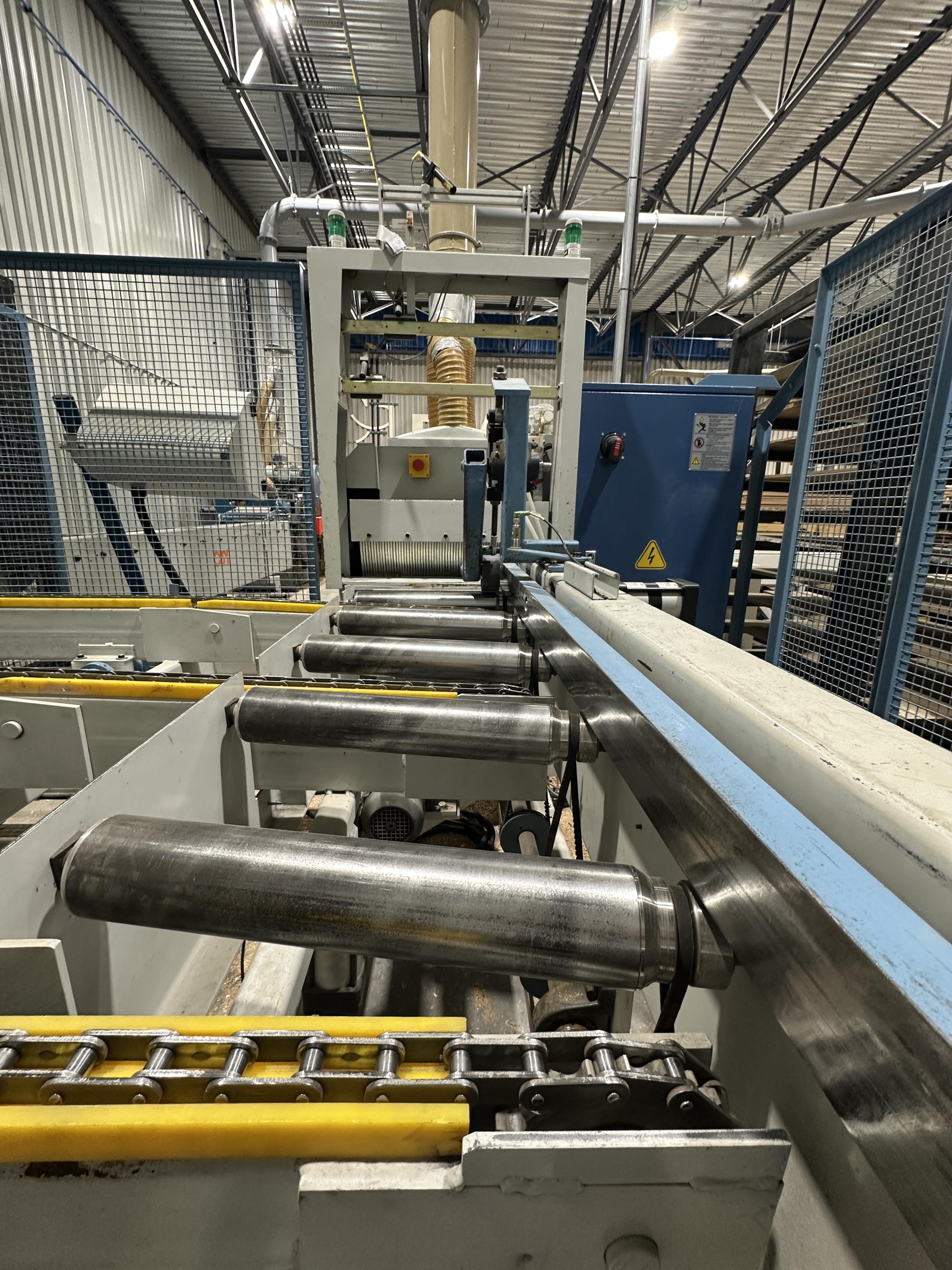

• Board positioning with movable fence + mobile blade positioning

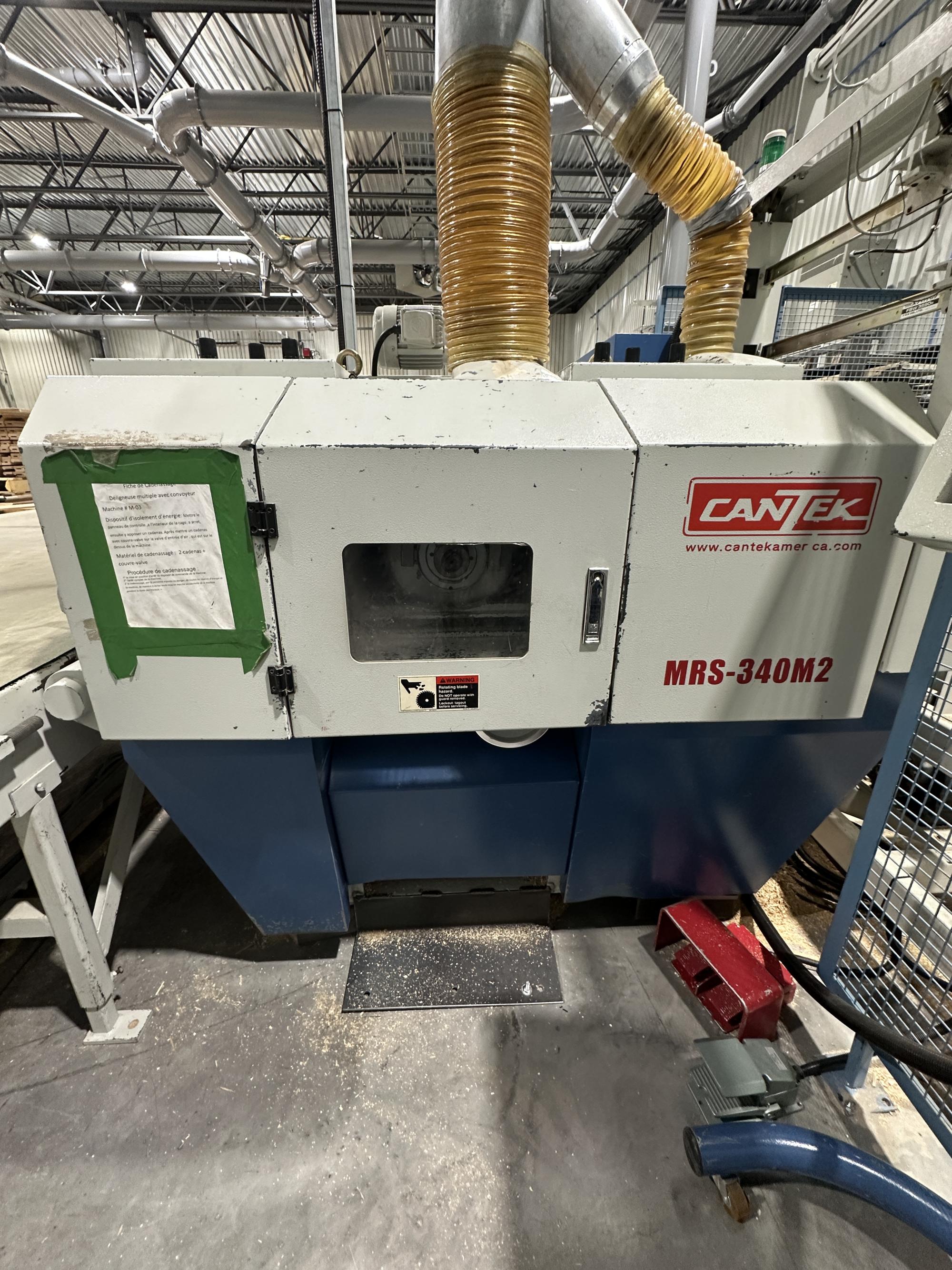

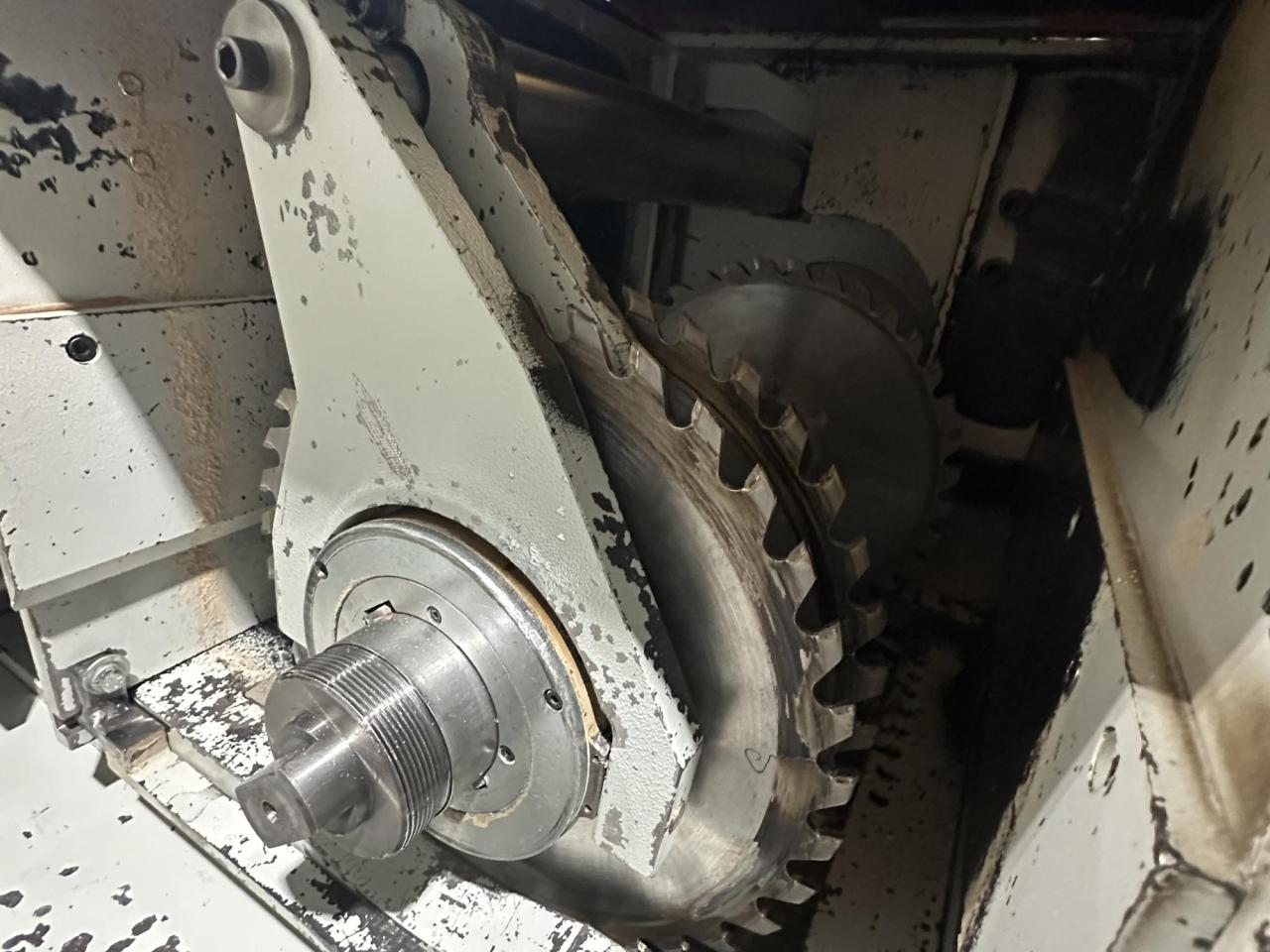

• Edging — Cantek MRS 340-M2 / 50 HP – 3 positioning lasers

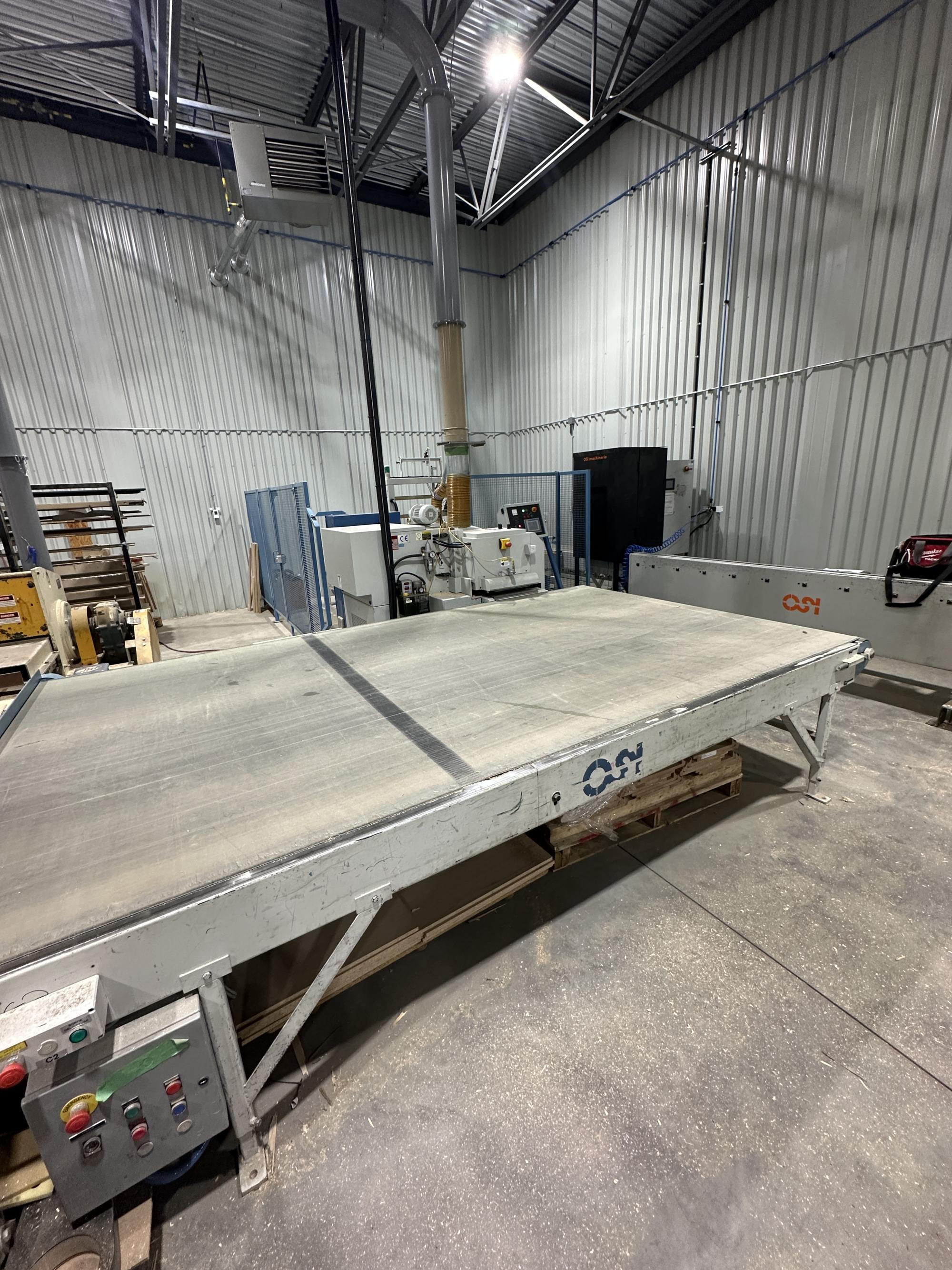

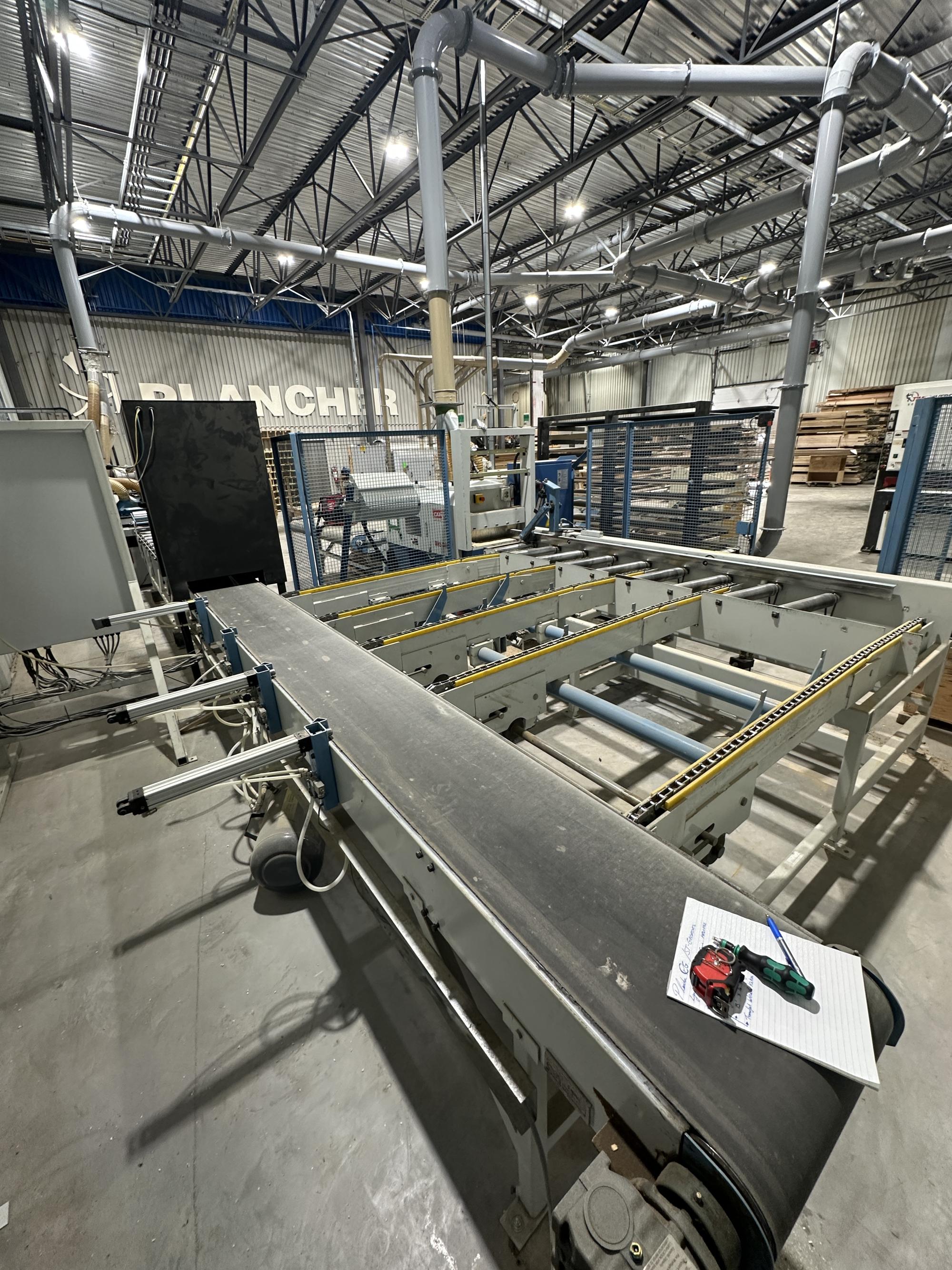

• Belt conveyor for lateral ejection: OSI (86 in x 150 in)
• Feed speed: 65 feet per minute
• SEW Eurodrive servo motor and servo drive

Overall line dimensions: 30 feet x 30 feet

The line is still operational, allowing for on-site testing.
