Superfici Bravorobot 5 axis / Flat Spray Line

Superfici Bravorobot Flat Spray Line

• The line can be used in either “5-axis robot” mode or continuous “Reciprocator” mode.
• Workpiece length: Minimum 12", Maximum 10' for panels, 12' for mouldings
• Workpiece width: Minimum 1", Maximum 51" (nominal 4')
• Workpiece thickness: Minimum 1/8", Maximum 4" (105 mm)
• Working height (Constant pass line): 900 mm (+/- 20 mm), 35 7/16"
• Spray cabinet operating speed: 2–6 meters/minute
• Spray unit movement speed: 40–140 meters/minute

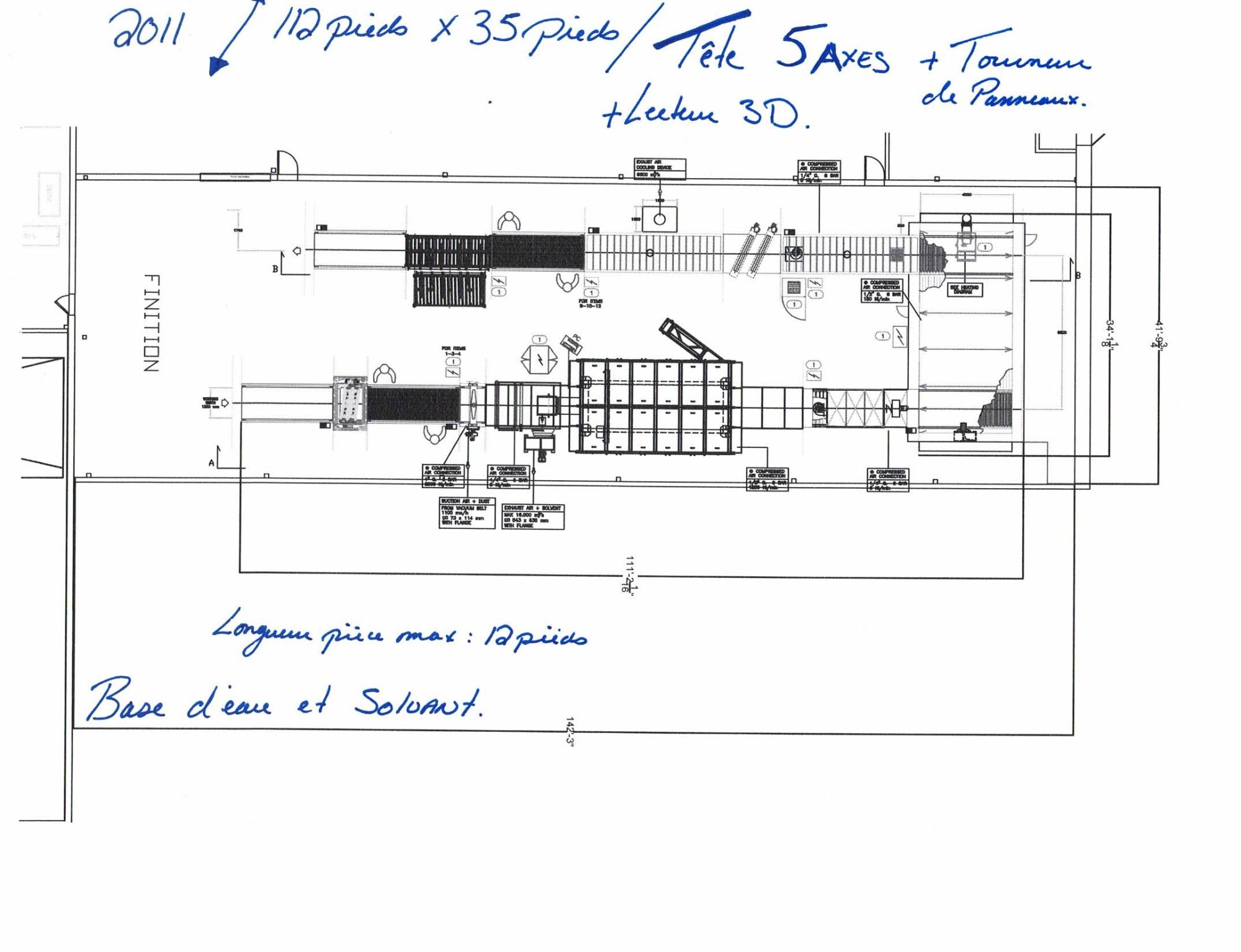

• Dimensions: 112' long x 40' wide

WORK ZONE DETAILS

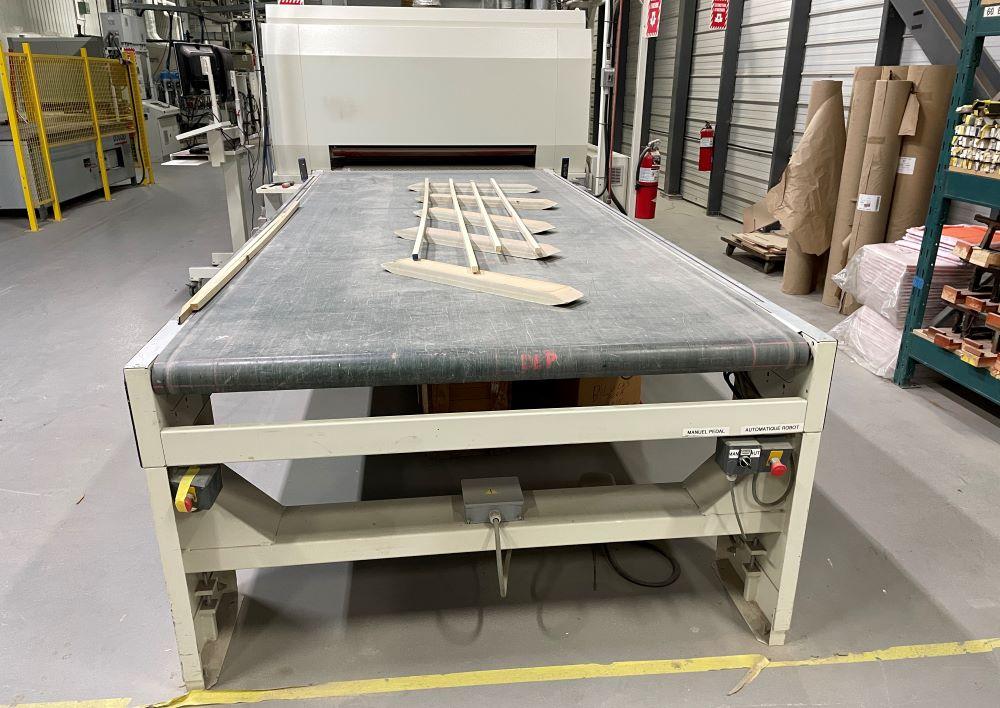

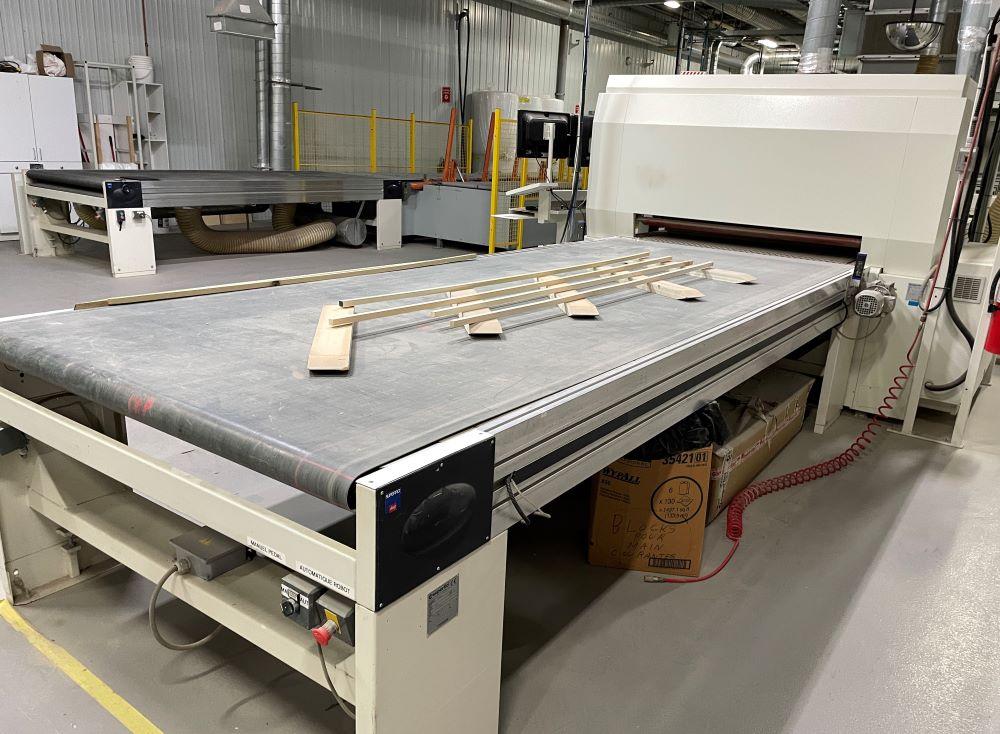

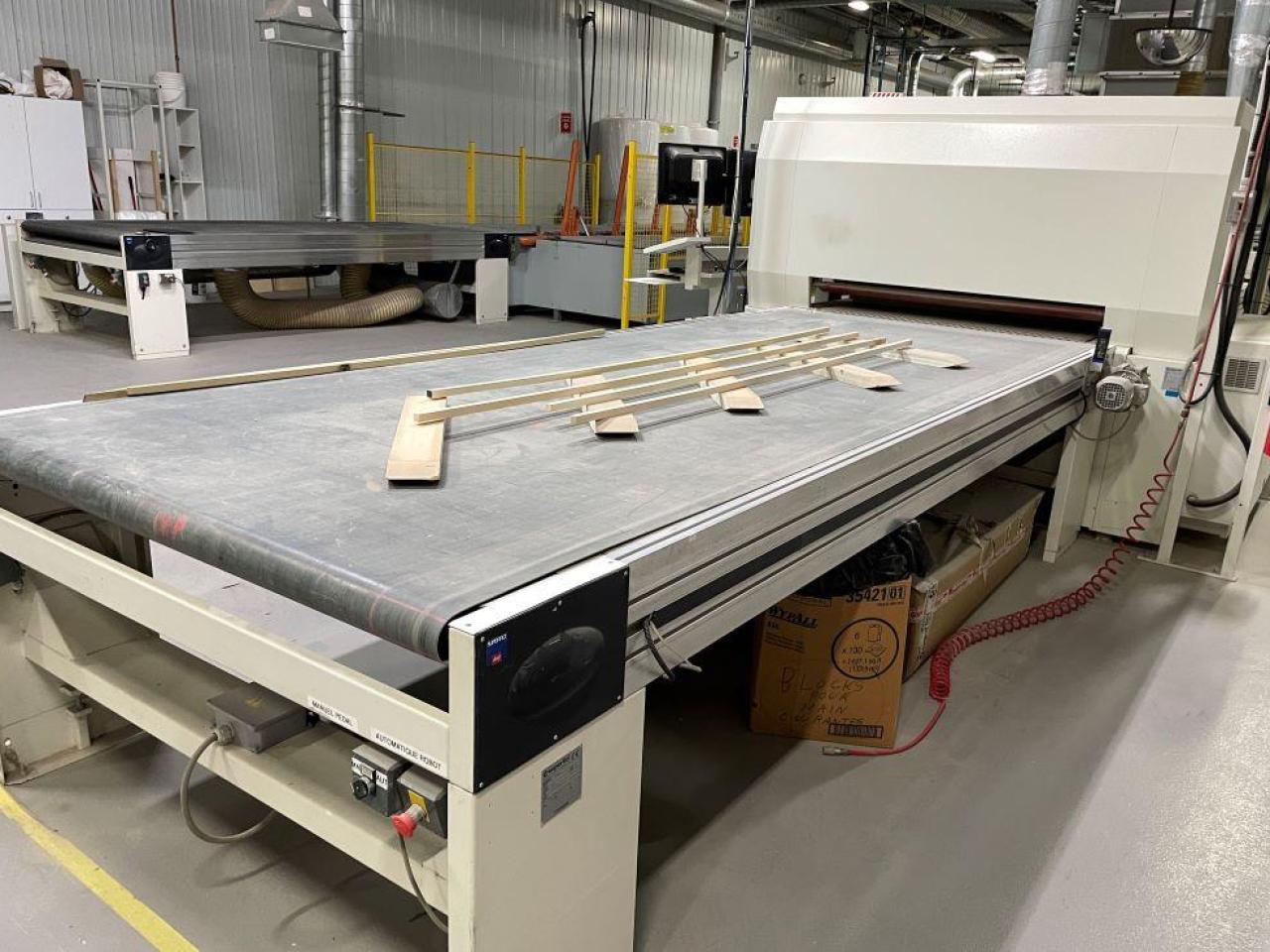

• Belt conveyor entering the sander

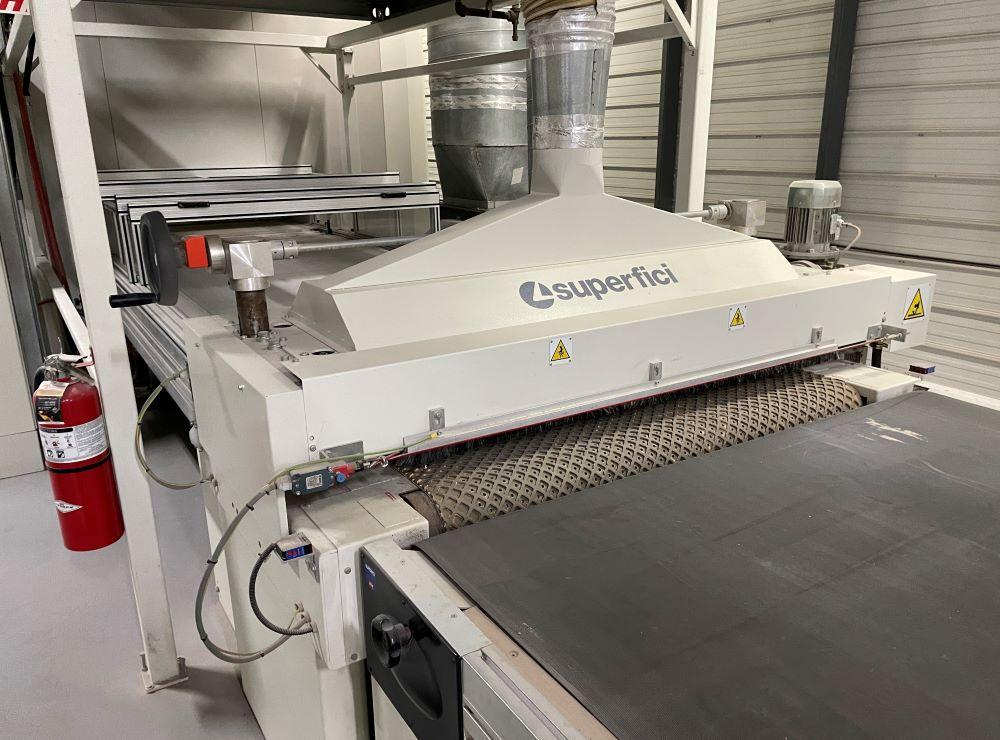

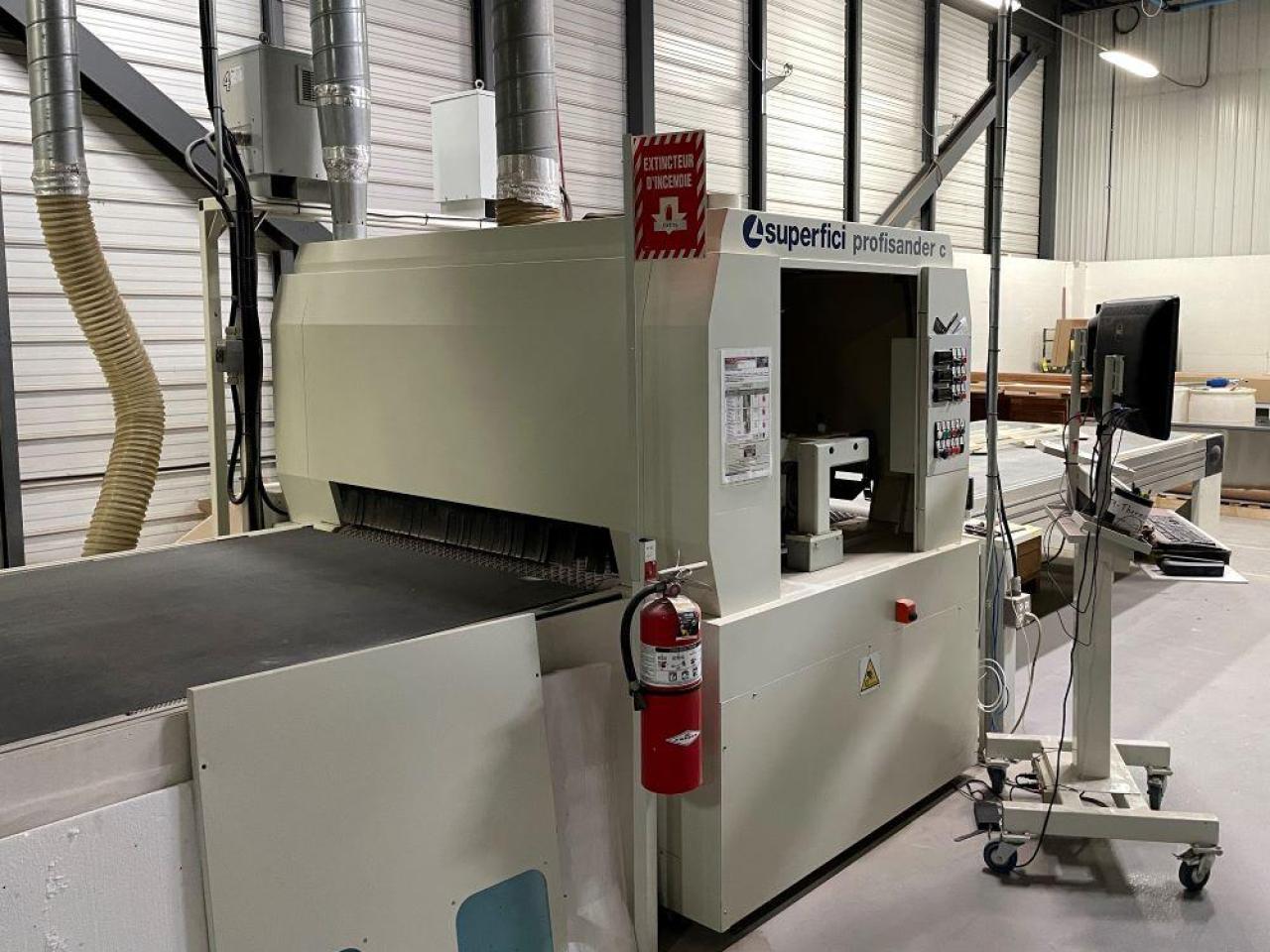

• Brush sander – Profisander-C Type, with 2 angled “FLEXTRIM” brushes for edge rounding and denibbing sanders
• Belt conveyor exiting the sander and quality control station
• Cleaning brush – Type FV/SISAL/1 with suction to remove dust before spraying
• Belt conveyor entering spray area

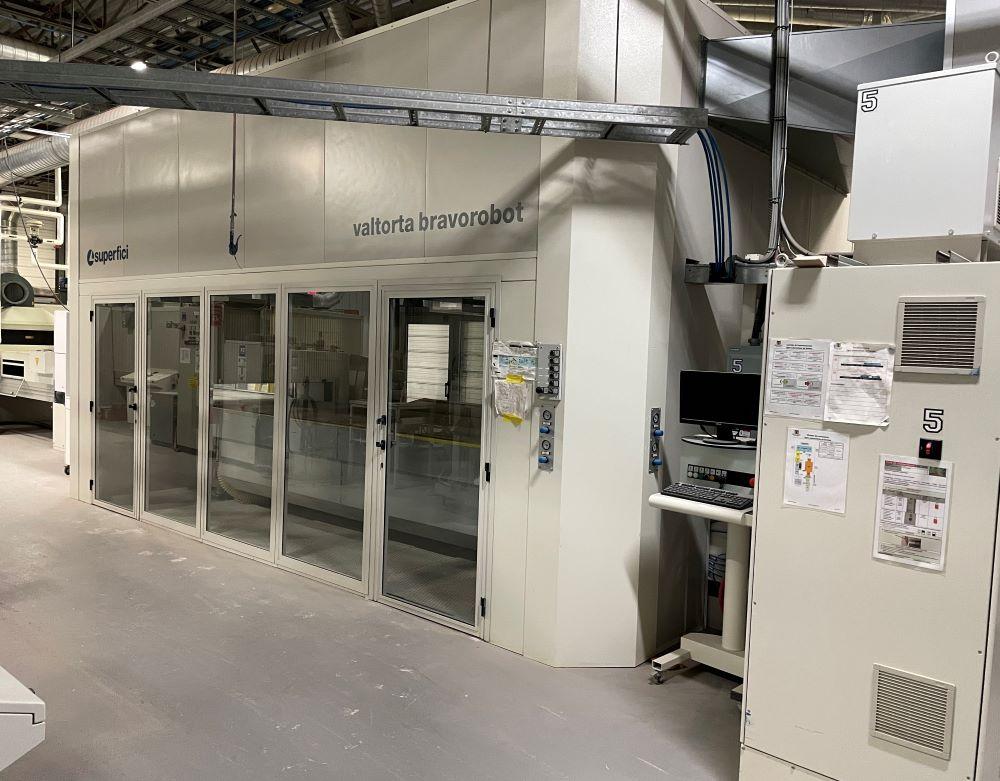

• Valtorta Bravotobot P1 spray robot, 4 guns for flat (vertical) spraying and 1 5-axis gun for edge spraying, paper shielding around conveyor
• Belt conveyor exiting spray zone

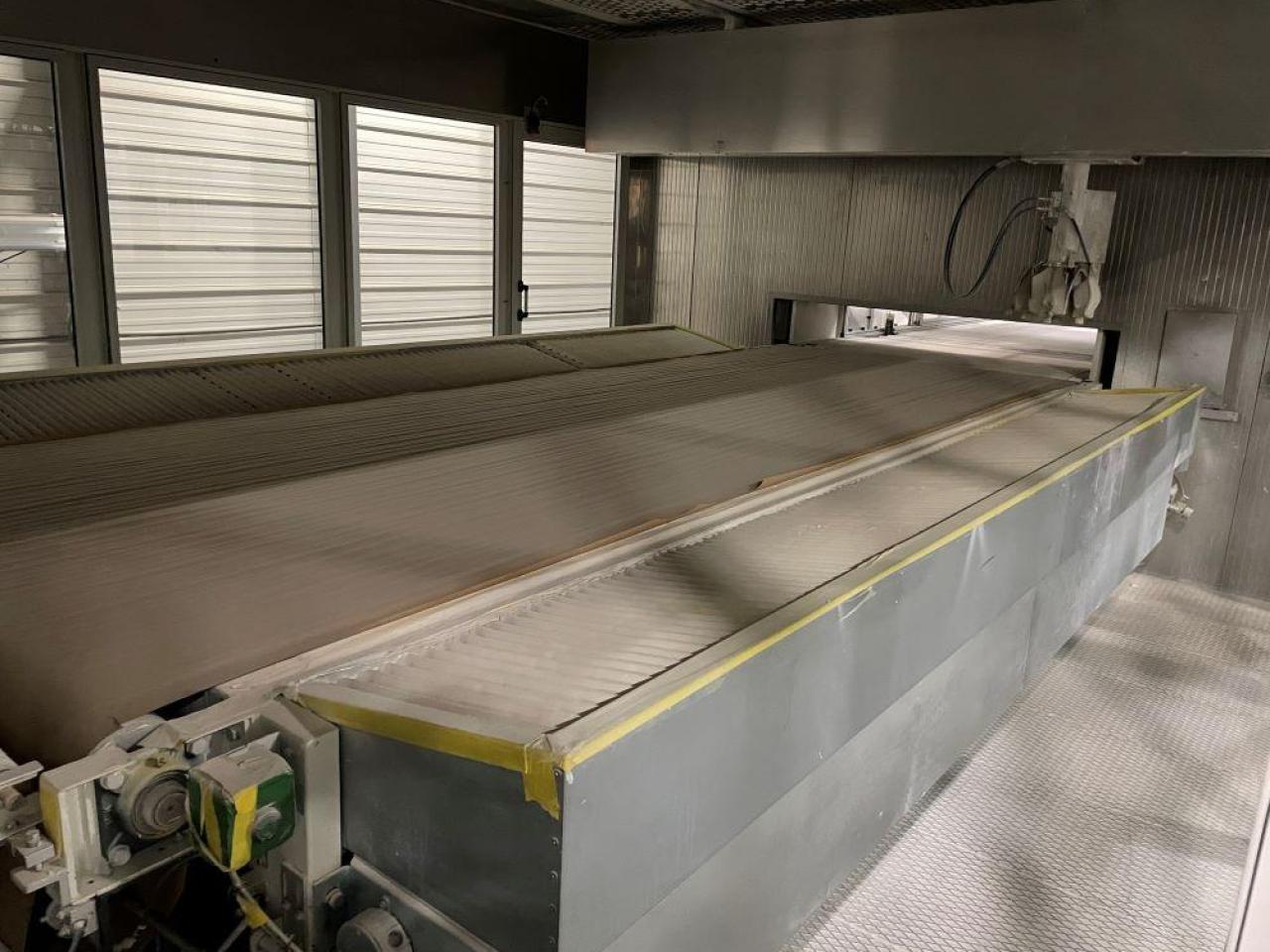

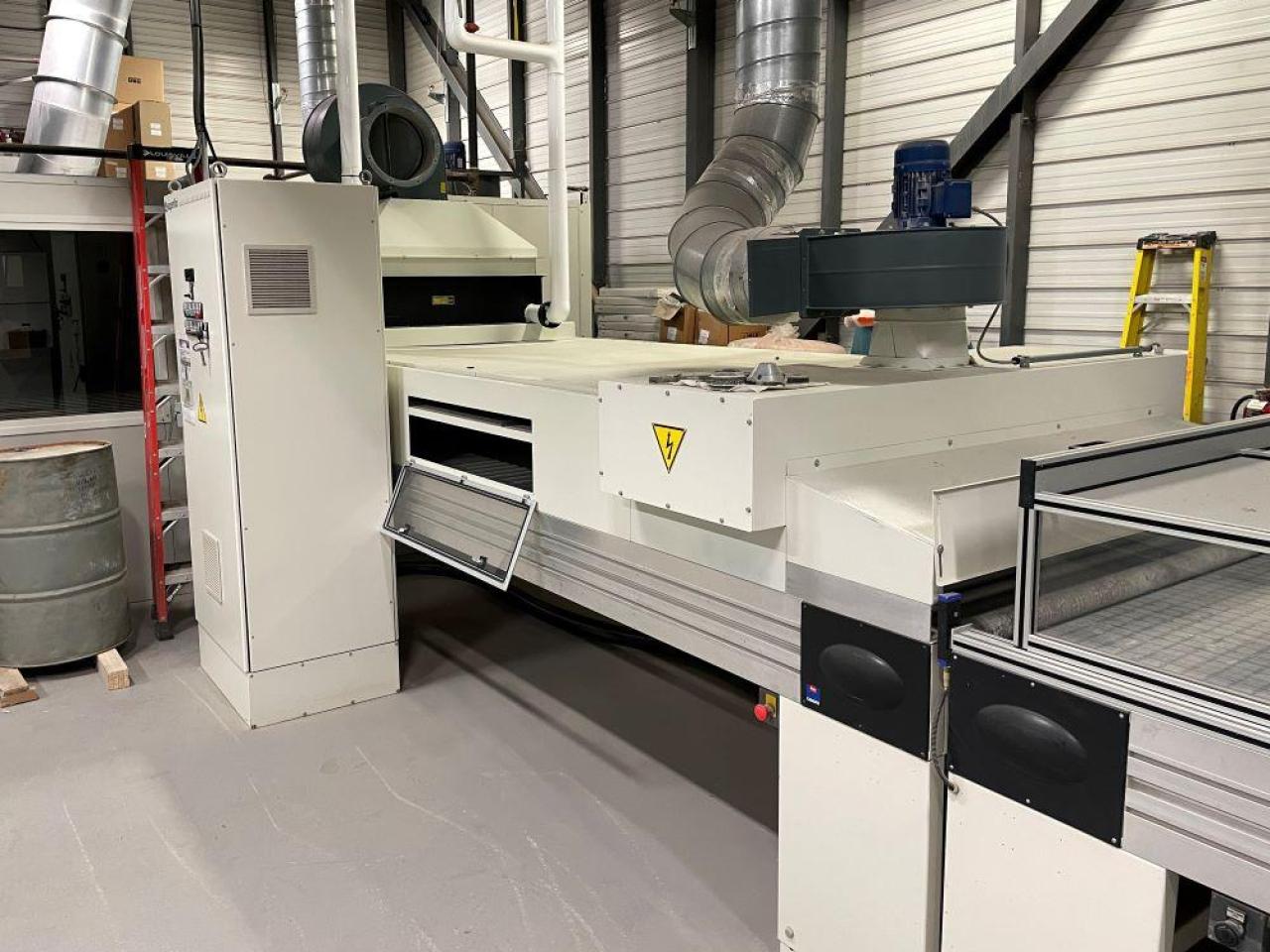

• Drying Zone 1: IRS Laminar Dryer 5M, UV flash-off evaporation
• Drying Zone 2: 180° left-hand transfer, hot air blower, glycol loop, and 6,000,000 BTU natural gas furnace
• Drying Zone 3: Return-forward loop, hot air and glycol
• Drying Zone 4: Air Blade Dryer with UV lamp for hardener curing
• Cooling zone: Air Blade Cooler with cooling system unit
• Belt conveyor exiting cooler and quality control station
• Doucet ATF-180 panel flipper
• Exit belt conveyor

Included

• 5 paint pumps
• 2 spray units with 5 guns each (1 installed, 1 spare)
• All control panels, computers, and screens required for operation
• Electrical transformers for 600V 3-phase power
• 2 hot water tanks
• Gas boiler and glycol tank with control panel
• Interior piping for glycol line, dust collection (dust collector and accessories not included), and hot/cold air ducts
• Inventory of parts: filters, brushes, paper rolls, and wooden or MDF templates
• All manuals and miscellaneous tools

Note: The finishing line has been dismantled. Gathering and transportation costs are the responsibility of the buyer.
